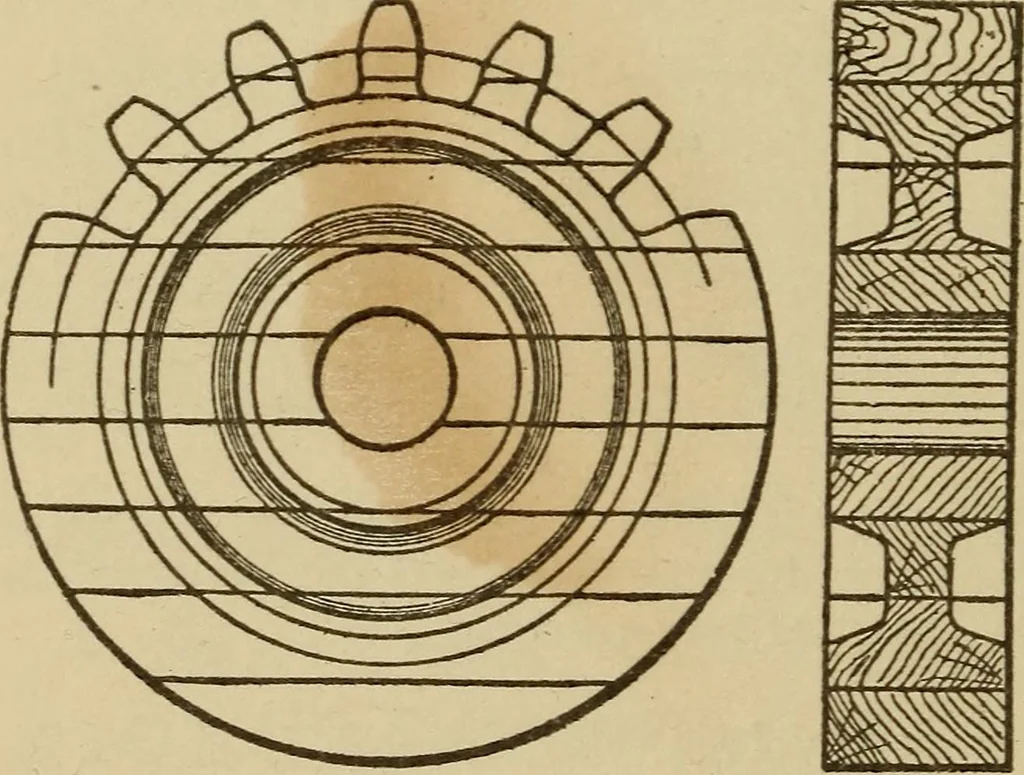

as a guide for bringing all tooth spaces tothe same depth! Solid Pinions, Small gears, or pinions, as they are called, areusually made with a solid web instead of arms, and are glued up insolid blocks of end wood, the grain of the entire block running parallelwith the face of the teeth. Such an… … Fig. 260. Section Showing Small Gear Madefrom Glued-Up Stock Bevel Gears Built»Up Construction. Patterns for bevel and miter gears arebuilt as illustrated at a and h, Fig. 261. The segments are to oxerlap PATTERN MAKING 147 as shown, which is not only a saving of stock, but also saves timewhich…
