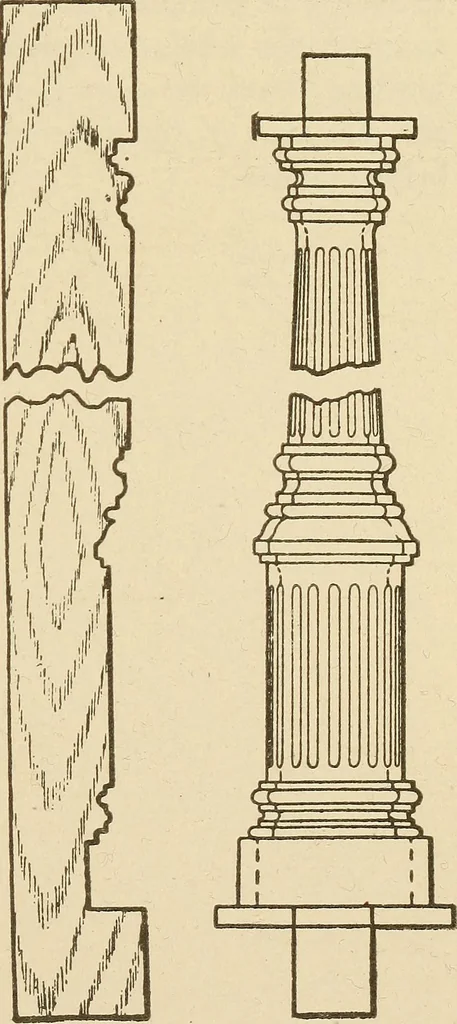

with a special core boxor better with a sweep, as shown inFig. 269. This sweep is used toshape the loam core that is to bebuilt up on an iron pipe. Fig. 269Is the outline of the template thatis to be used in sweeping the corefor the interior of the columnsshown in Fig. 270. Follow Boards, All thin… … Fi^. 270. CompletedUolumn Pattern 152 PATTERN MAKING
