Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1921)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 178

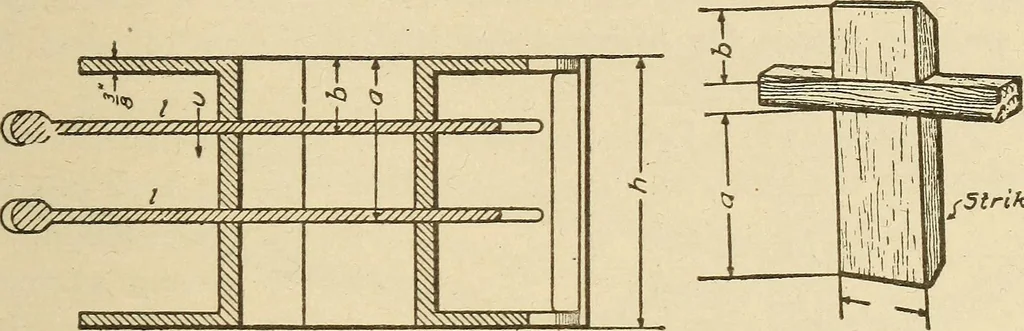

Fig. 276., FlangC9 and Partially Assembled Rear Halfof Core-Box Pattern PATTERN MAKING 159 Having the flanges assembled, nail and glue the walls x inplace. This stock is to be I inch thick, with the grain runningvertically. Where the radius is short, narrow pieces should beused as shown. The work… … strike Fig. 277. Vertical Sectioa of Core Box on Line i i, Fig. 274 on at the same time. Smooth the inside of each half and the wholeto fit the template. Slots and Draw Pieces. The slots vim shall be carefully laidout to the dimensions a and b, shown in the vertical section of tliccore box. Fig.…
Patternmaking
