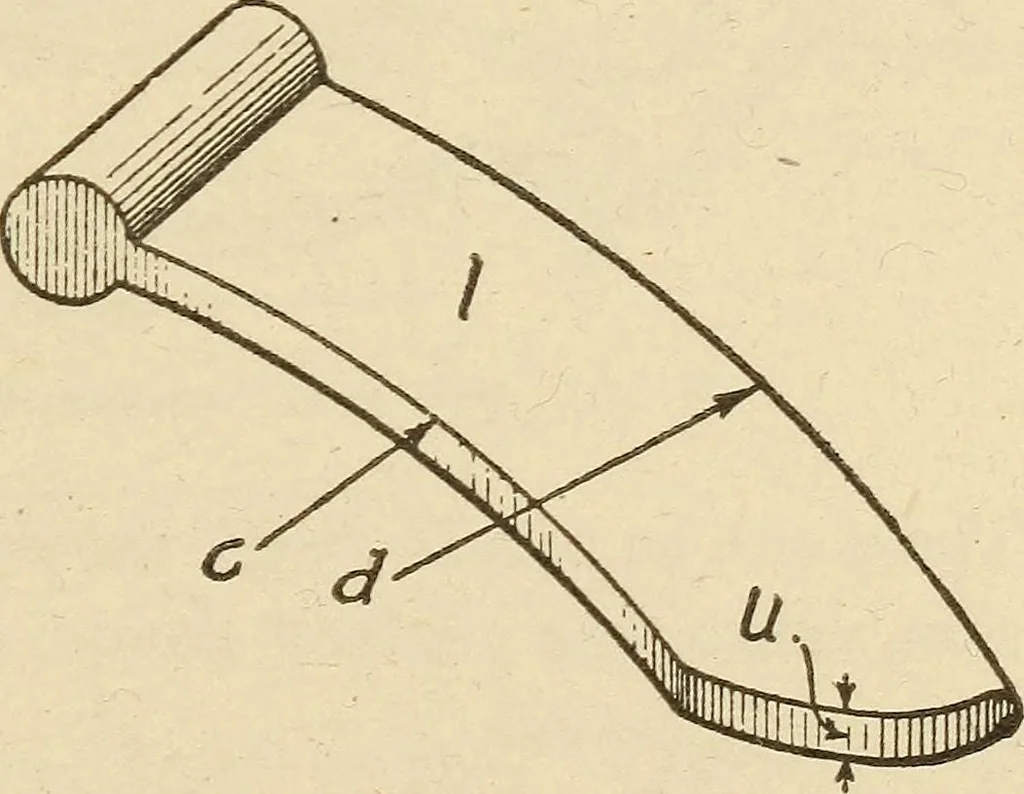

n the requiredwidth, being filed out in thecasting. A pattern for the drawpieces I and Z is to be made as shown in Figs. 274, 277, and 278;the radii c and d being shown in Fig. 272. The thickness is u, andan enlargement at one end is provided to serve as a handle. Twocastings from this pattern are… … Fig. 273. Draw Pieces for Core Box 160 PATTERN MAKING
