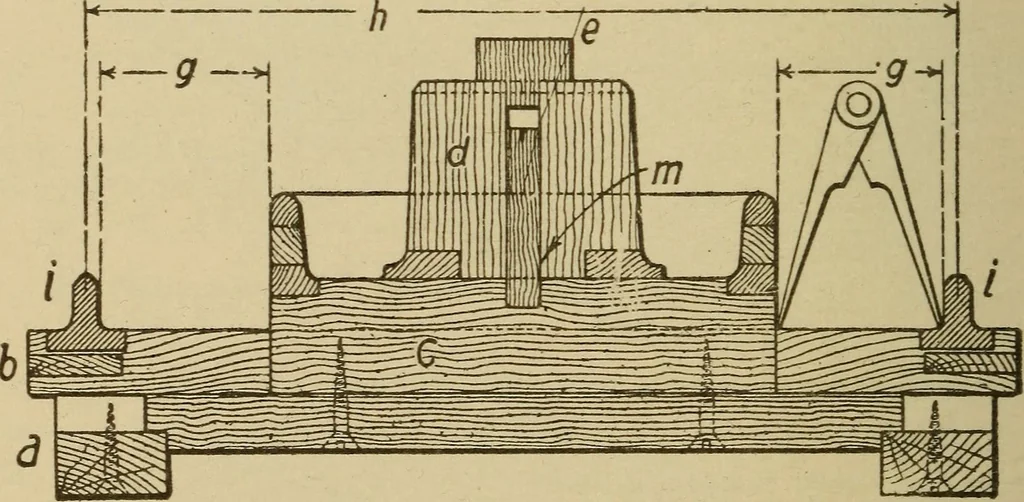

f the pattern and flask pins, the 1-inch holecan be bored in the cope plate, and the hole in the stripping platefor the flange c can be carefully sawed with a jig saw or keyholesaw. This hole should be fitted over the pattern by blue-chalkingthe outside of the flange and trimming the… … Fig. 209. Section through Center ot Nowel Mold Machine is bound to swell to some extent, but a small amount of sand gettingbetween pattern and stripping plate will grind out the stock, so therewill be little trouble from this source. flask Connection, The flask pins i are to be made of cast ironor…
