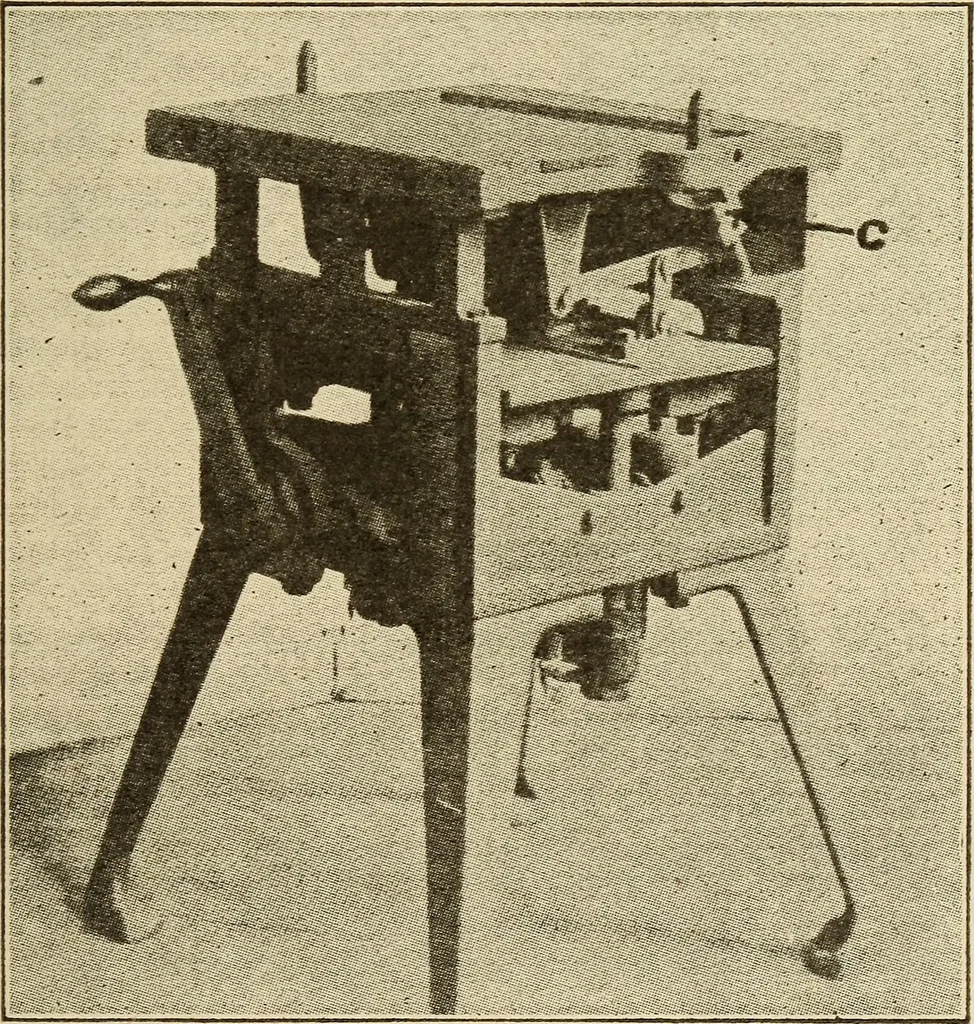

Fig. 309. Original Gated Patterns, Showing First Attempt to Increase Produc-tion. They Require Dry-Sand Core for Each Casting. With Machine-Mounted Patterns, Entire Mold la Alade in Green Sand … Fig. 310. Nowel or Drag Stripping-PIate Hand-RammedMolding Machine endwise onto the holder frame, as indicated in Fig. 308, the bevelon the inside of the lugs o being molded with a dry-sand core, andthe round recesses in the holder also being molded with a dry-sand 184 PATTERN MAKING core. The…
