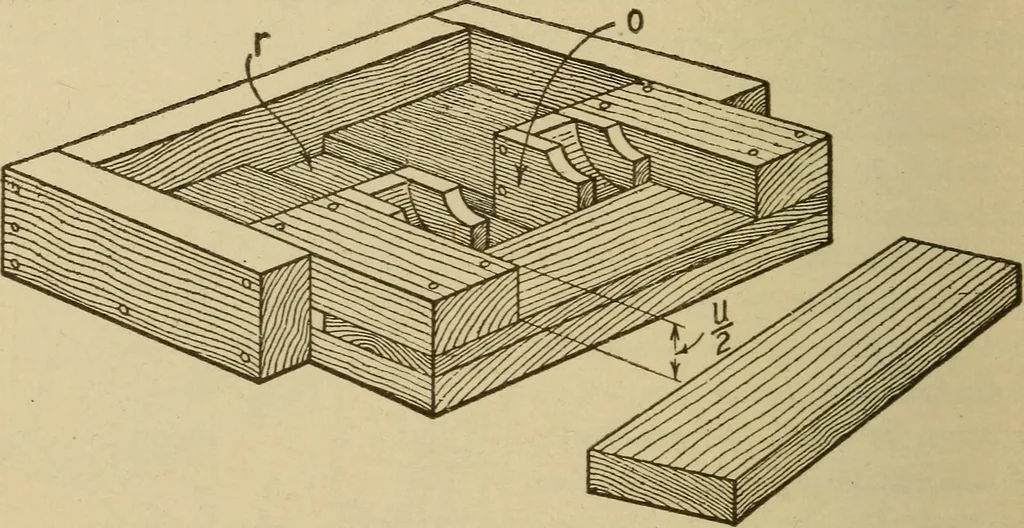

CorePrints Fig. 349. Master Pattern for Part ci, Fig. 348 Connecting the link J and j\ by the arms I and h to diametricallyopposite points on the disk k transmits an opposing motion to linksj and ji, moving the parts ec away from each other, pressing the 202 PATTERN MAKING Qiold to the form… … Fig. 350. Core Box for Pattcm, Fig. 349 be lowered, dra\\ang and stripping the patterns cc and Ci throughthe stripping plate. The links j and ji extend the length of the
