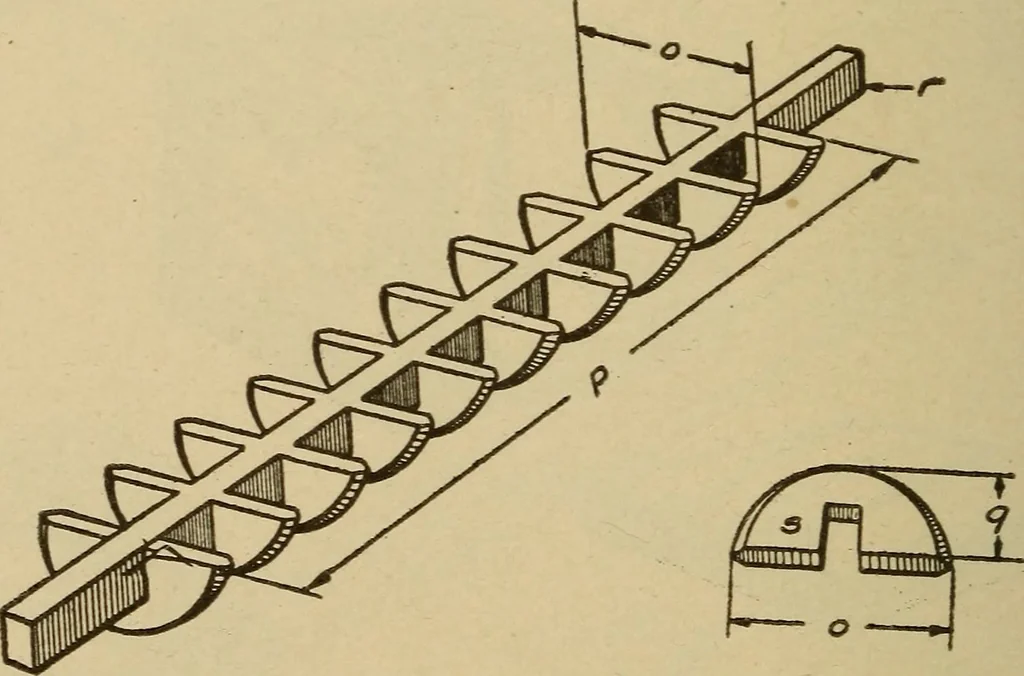

an iron casting. This is illustrated in Fig. 371. Thepattern consists of a rectangular arbor r and of several patternsfor the flanges s. These flanges should be notched to fit over thearbor, but need not be attached in any other way, the molder placingthem in the position required; his judgment of… … Fig. 371. Cast-iron Arbor of the core, and the thickness about I inch. The outside circiJaredges should be chamfered to a thin edge, so as to prevent softramming under the flanges. The width q should be J inch lessthan the half circle, as it is required to have the sand rammed overthe top of the…
