Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1921)

Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 238

An illustration from Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice, 1921, leaf 238

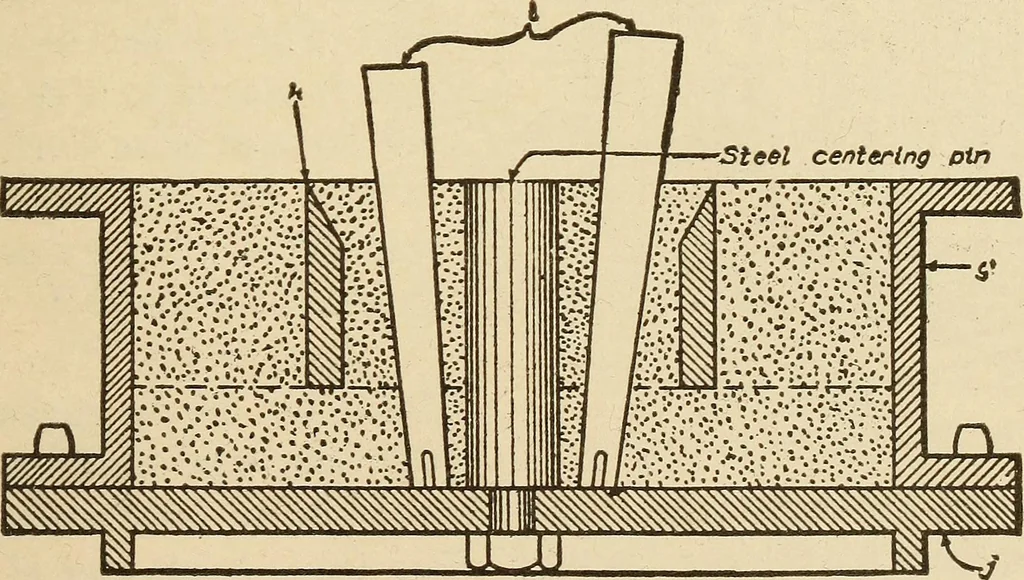

Fig. 380. Drag Flask on Mold Plato … Fig. 381. Cope Mold on Mold Plate Flask Construction. Cheeh The pattern for the flask willbe molded by striking a green-sand core, lagging this to obtain the 220 PATTERN MAKING
