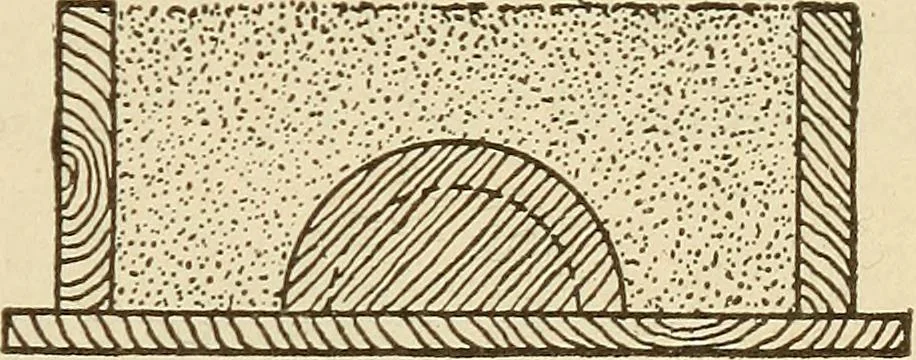

Fig. 107. Half-Core Box … which the dry-sand core is formed, will be the extreme length ofthe pattern including x and y^ and the inside width will be the exactdiameter of the core prints. In this case, the core being a cylinder,only a half-core box, Fig. 107, isused. In it are made two semi-cylindrical cores, which, after…
