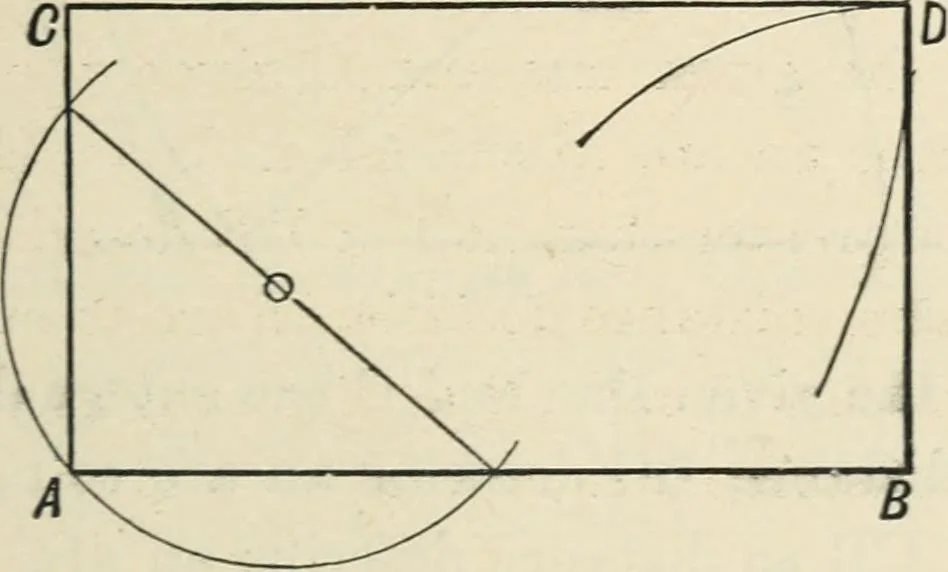

EOMETRICAL DRAWING. 107 arc to meet former are in D; join CD and BD, completingthe square. (Fig. 66.) (6) On a given diagonal AB. With centre A and distance greater than half of AB, de-scribe arc CD, and with centre B and same distance describean arc to cut former arc in C and D; join CD and… … Fig. 68. Let AB represent the greater side; erect AC perpendicularto AB at A, and with centre C and distance equal to ABdescribe an arc; with centre B and distance equal to ACdescribe an arc cutting former arc in D; join DC and DB,completing the required oblong. (Fig. 68.) No. Jf.—To divide a given…
