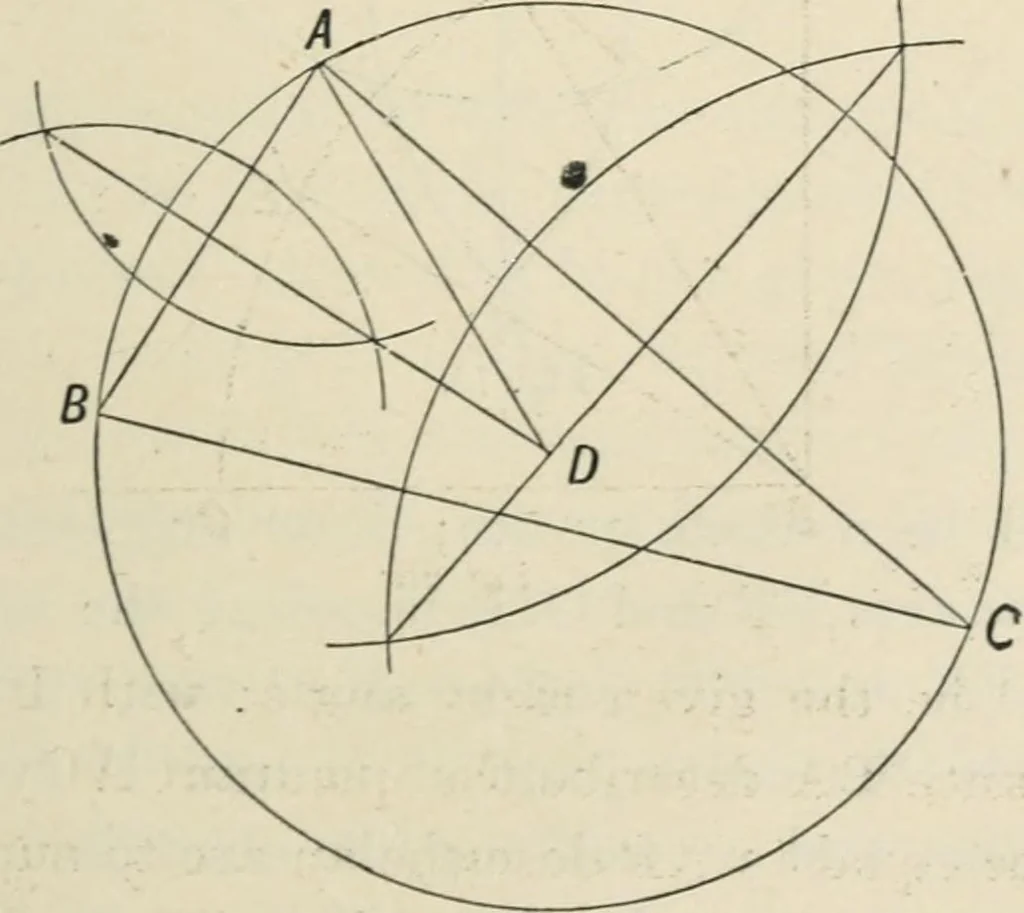

Let ABC be the given triangle; bisect the angle at A byAD, and the angle at B by BD, cutting AD in D; draw DEperpendicular to AB at point E ; then with centre D anddistance DE describe the circle. (Eig. 76.) No. 9.—To draw a circle through three given points, which,however, cannot be in the same… … Fig. 77. 112 DRAWING. Let A, B, C be the given points; join them to form a tri-angle; with centre A, and distance greater than half of AC,describe an arc; with centre C and same distance, describe anarc to cut former; join points of section of arcs; this line willpass through the centre of the…
