Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 129

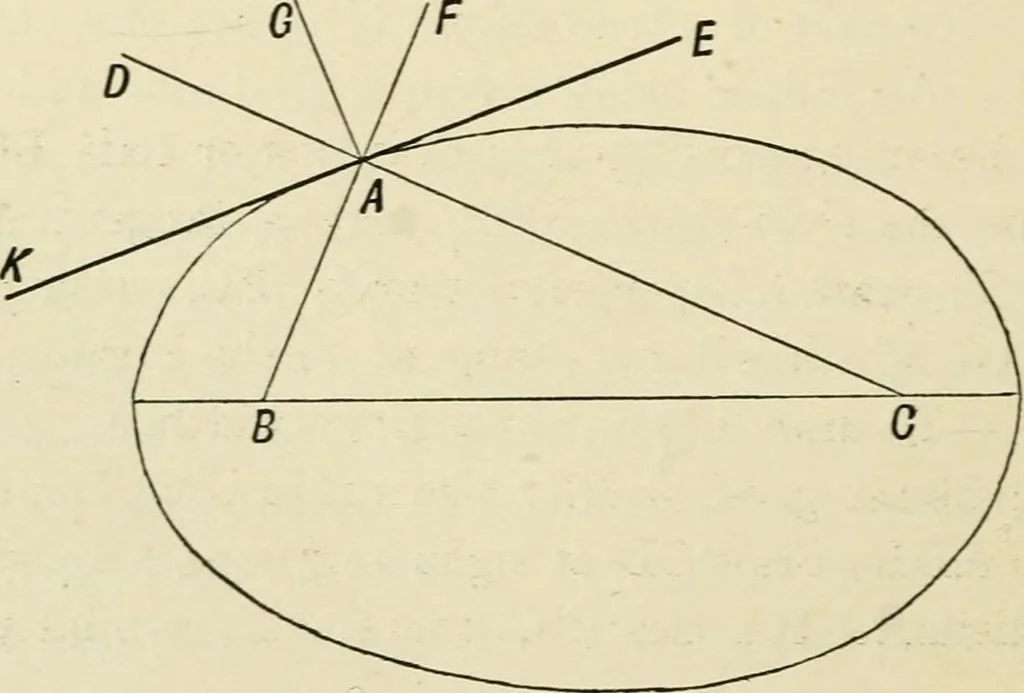

Fig. 97. No. 25.—To draw a tangent to an ellipse (a) from a pointin the circumference. … Fig. 98. GEOMETRICAL DRAWING. 127 Let B, C be the foci and A, given point on the curve; joinBA and CA and produce them to D and F; bisect the angleBAD by AK, and the angle DAF by AG. Then will KA bea tangent and GA a perpendicular or normal to it, at thepoint of contact^ A. (Fig. 98.) (6) From an…
Geometrical drawing · Perspective
