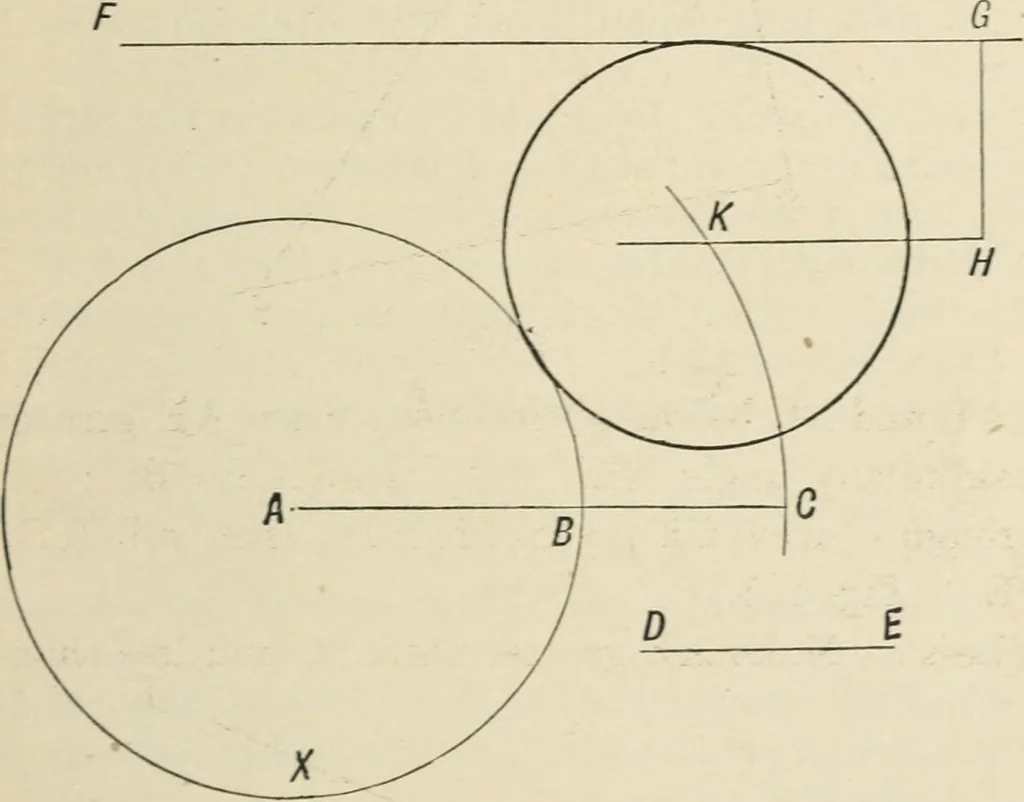

CAL DRAWING. 131 No. 29.—To draw a circle of given radius which shall touchboth lines of a given angle. Let BAC be the given angle and ST the given radius; bisectangle by line AF; erect on either line a perpendicular DEequal to ST; through E draw EG parallel to AD, and cuttingAF in G; then a circle… … Fig. 105. Let FG be a given line, BX a given circle, and DE a givenradius; draw a line GH perpendicular to FG and equal toDE; through H draw HK parallel to FG; draw any radiusAB and produce it, making the part produced equal to DE;then with centre A and distance AC, describe an arc cuttingHK in K:…
