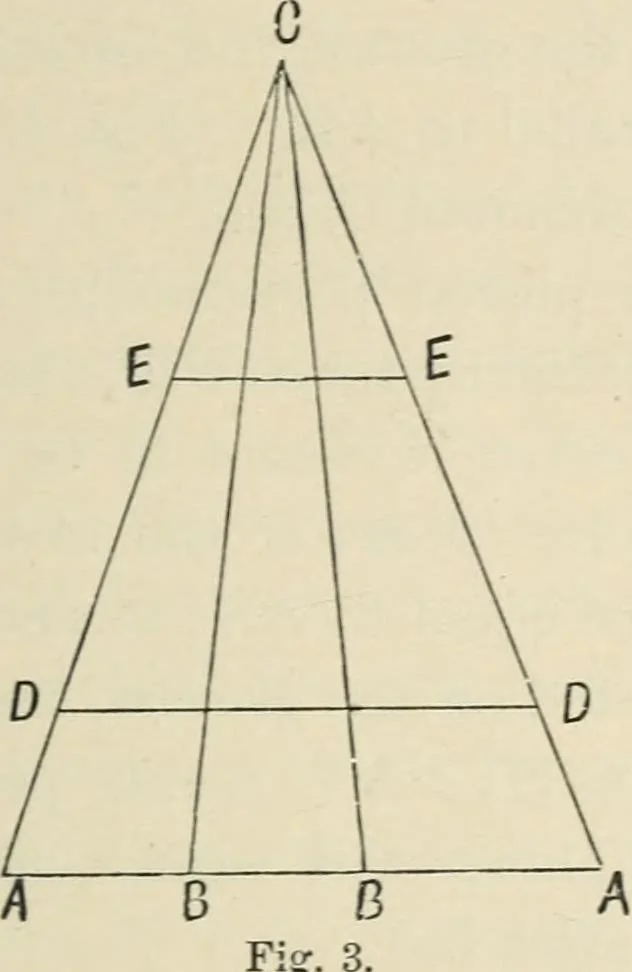

ould appear to vanish at the same point directly in front ofus, hence the rule : Lines parallel to the line of direction viU vanish at thecentre of vision. (Fig. 3.) Thus, let C be centre of vision, and AA, BB the ends ofparallel lines : they will all meet at C, and all the lines drawnfrom C to AB… … Parallel Urns drawn between vanishing lines are of equallength, and, conversely, the lines joining the extremities ofequal parallel lines will vanish to a point. HL HL ~~ f V T n A BL 0 Again, if the spectator stood on the grqnnd at 0, where thepicture plane rests, and looked towards C on the…
