Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 89

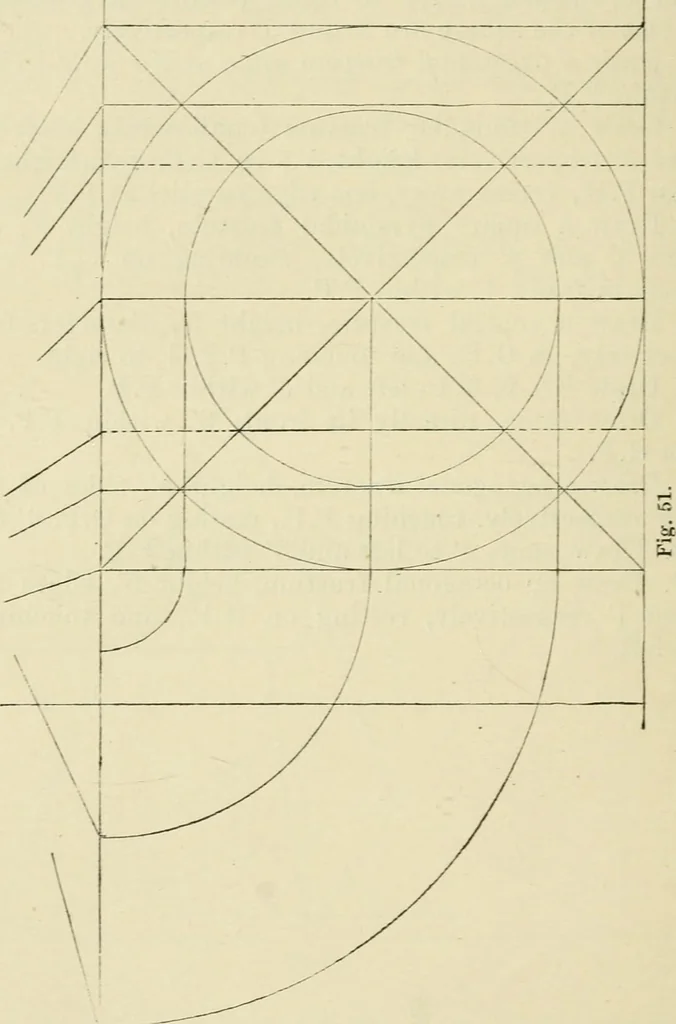

.P., and touching P.P. 4 to right. 6. Draw No. 5, 6 to left and 3 within P.P. 7. Draw same, directly in front, 3 within P.P. and 3above G.P. 8. Draw a hexagonal frustum, height 5, sides of bases 3and 2 respectively, touching P.P., resting on G.P. 4 to right. 9. Draw same, 4 to left and 4 within… … FRUSTA. 87 Exercise XIII. (H = 6, L.D. = 4, scale J = l.) 1. 4 to right and 2 within P.P. draw a frustum of asquare pyramid, edges of squares 4 and 2 respectively, height4. 2. Draw same, touching P.P. 2 to left. 3. Draw same, directly in front, parallel to G.P. and 3above it. 4. Draw a conical…
