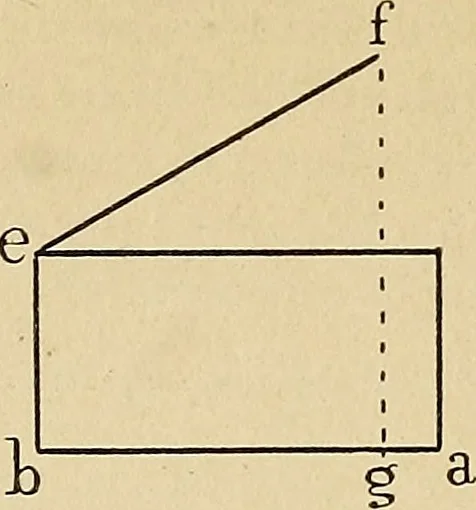

is really an old method that hasbeen used by architects for many years, but it is not usually describedin books on perspective. Architects frequently make perspectivedrawings of buildings from plans and elevations of the buildingwithout the use of vanishing points at all. We will draw the two last… … Fig. 8. Fig. 8 represents an end view, or a side elevation, of the box:shown in Fig. 6 when the observer is opposite the end of the box ea,and his eye is directed towards V^. The box is 4 X 2 X 8 withits lid ej open 30° ; from /, jg is drawn perpendicular to the baseof the box ha. A plan of the box…
