Piece goods manual : Fabrics described; textile, knit goods, weaving terms, etc., explained ; with notes on the classification of samples (1917)
Blanco, A. E · Shanghai : Statistical department of the Inspectorate general of customs · leaf 13

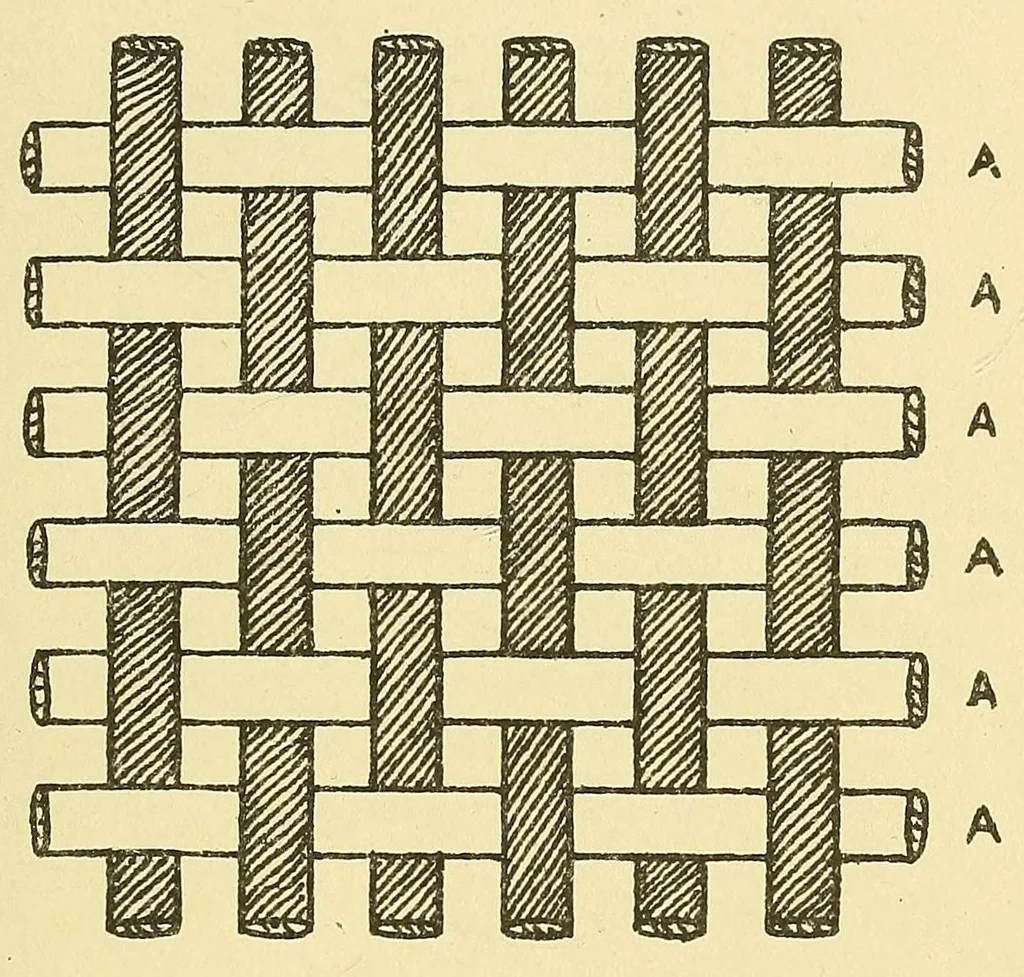

B B Figure 1. PLAIN WEAVE. A. Weft threads. B. Warp threads. Figure i shows the simplest manner of interlacing warp and weft threads. This style of weave is called plain, calico, or "one- over and one-under " weave.
Textile fabrics
