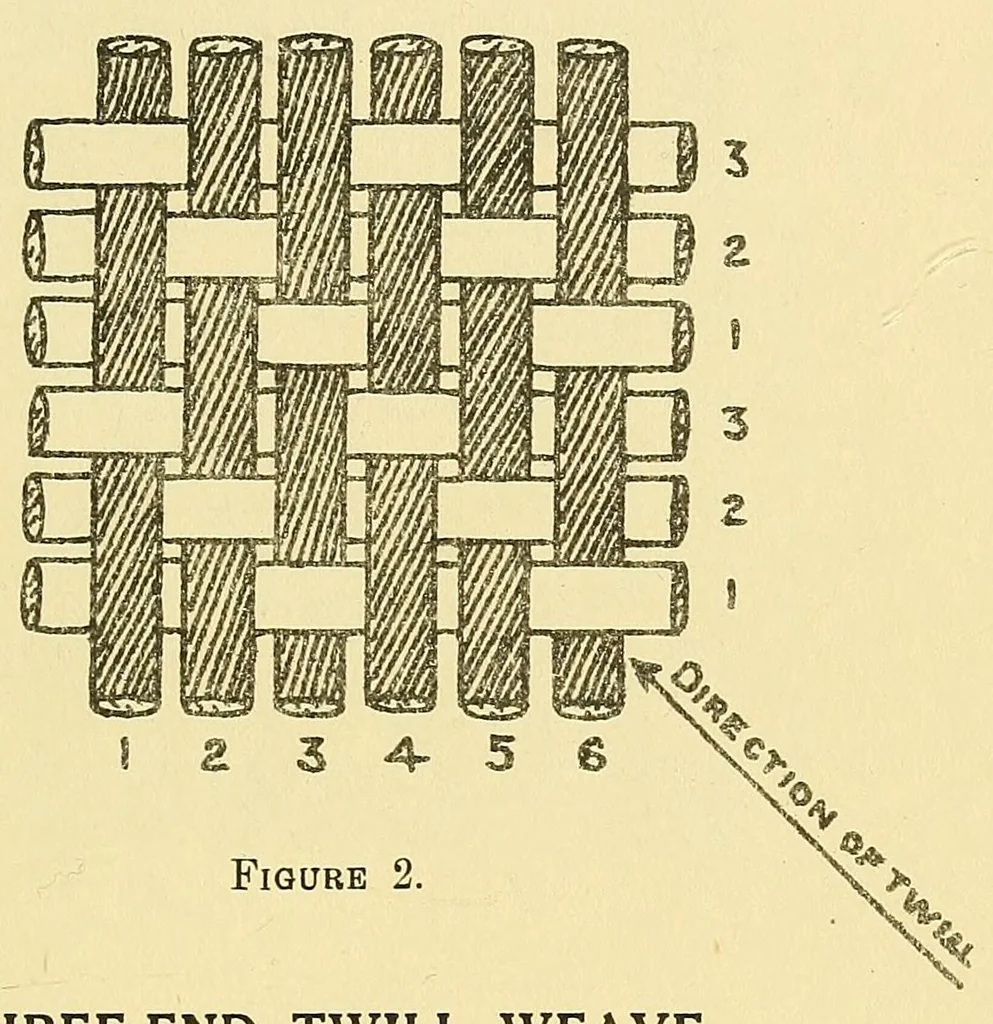

THREE-END TWILL WEAVE. This figure illustrates the interlacing of warp (shaded) and weft (white) threads, so as to produce a regular "three-end twill" weave. It also shows the direction of twill. In this figure the warp threads are shown interlaced with the weft threads in three distinct positions.…
