Piece goods manual : Fabrics described; textile, knit goods, weaving terms, etc., explained ; with notes on the classification of samples (1917)
Blanco, A. E · Shanghai : Statistical department of the Inspectorate general of customs · leaf 27

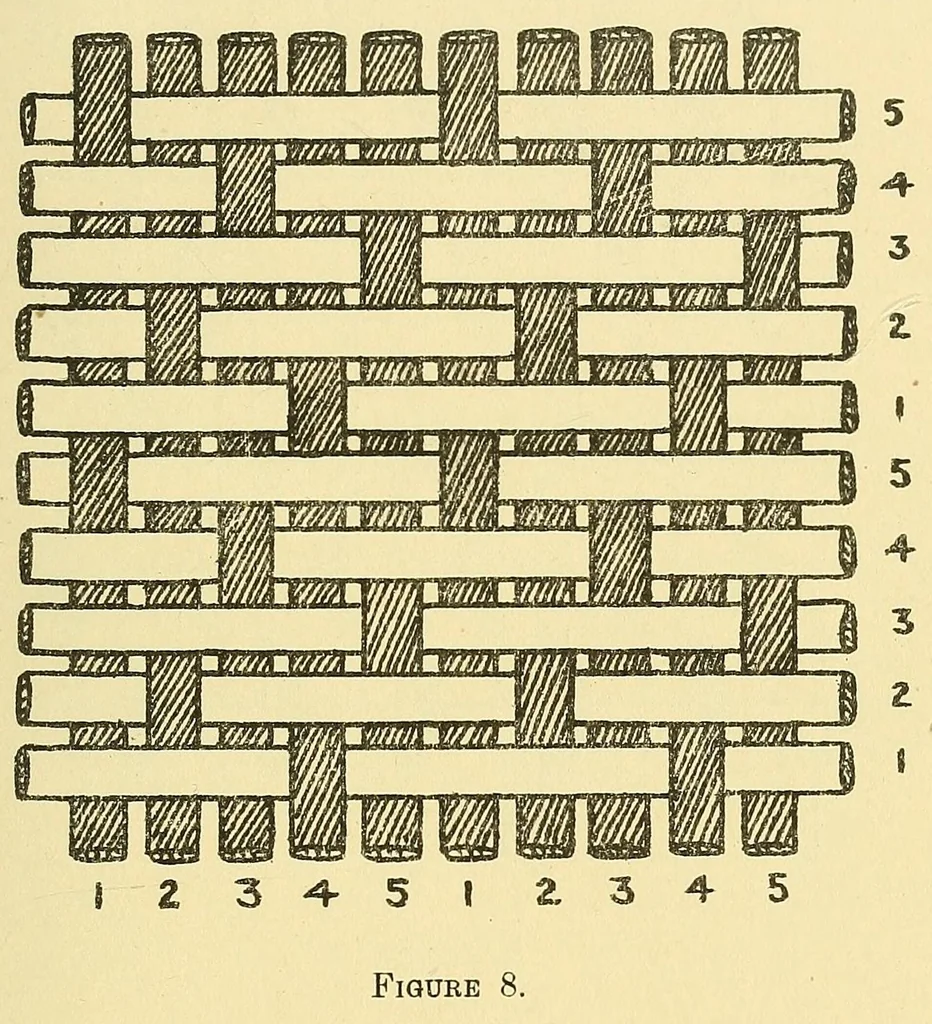

FIVE-END WEFT SATEEN WEAVE. This figure illustrates a five-end weft sateen. Sateen weaves are virtually a form of broken or rearranged twill. The weft sateen weave, represented by this figure, shows weft predominating on the face : it is practically the reverse of the weave shown by i'igure 7.
Textile fabrics
Internet Archive · Claire T. Carney Library, University of Massachusetts Dartmouth · Public domain (published before 1931). Free to use for anything.
