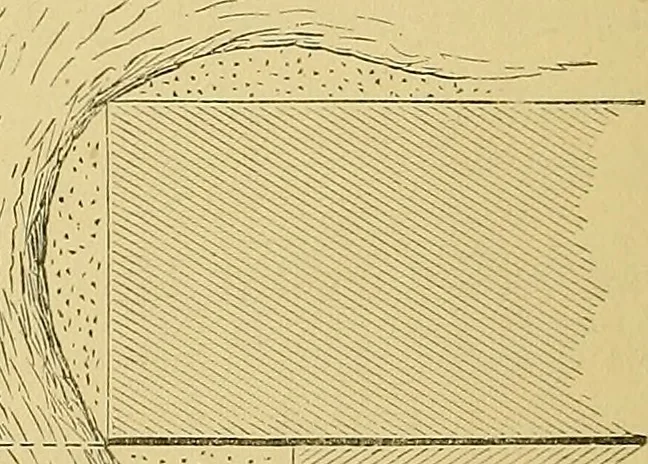

-,, Mm ■ ii wm ,■■ which takes place in the filaments of the steam vein withthe common slide valve. If the edge were formed as inFig. 2 the discharge would be much improved and ren-dered similar to that which occurs through an ordinarymouth piece. The curvature of the valve edge should commence far…
