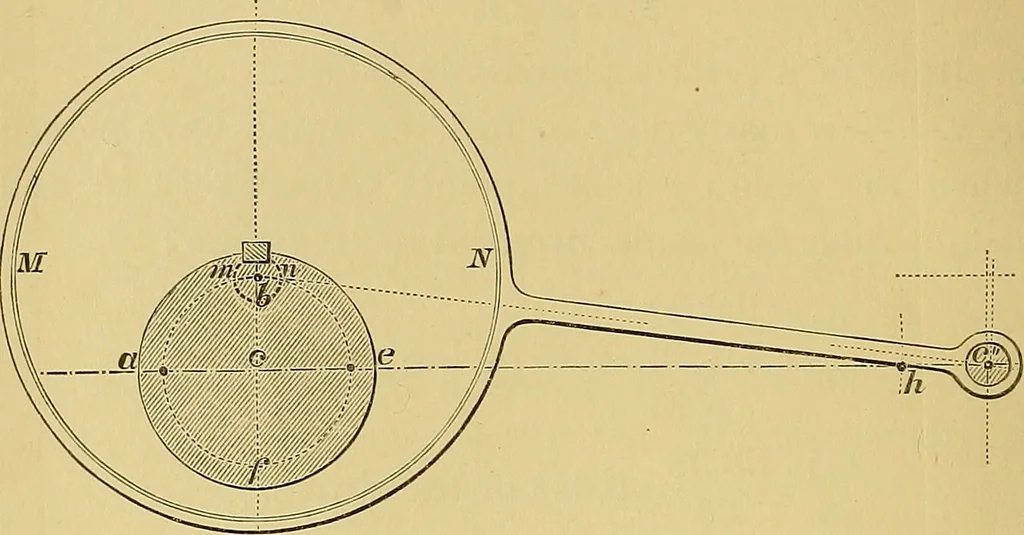

ere is secnrely fastened to the crank shaft a devicecalled an eccentric, which serves to impart a recipro-cating motion to the slide valve. Upon close inspection itappears that this is only a mechanical snbterfuge for asmall crank. The travel of any valve being small compared with that 30 PISTON,… … ting the shaft and the expense of forming the crank c b, thepin m, n, and enclosing strap of the rod are greatly en-larged until they attain the common diameter M N, theformer may then be slipped on, and keyed fast to the shafta e. Of course the motion will not be altered by thischange, but the…
