The practical application of the slide valve and link motion to stationary, portable, locomotive, and marine engines : with new and simple methods for proportioning the parts (1897)
Auchincloss, William Stuart, 1842-1928 · New York : Van Nostrand · leaf 90

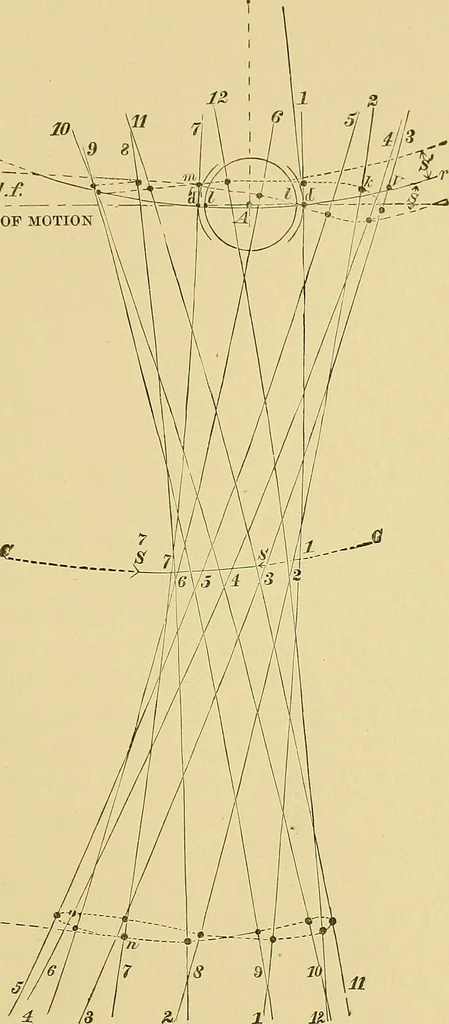

SHIFTING LINK MOTIONS.Fig. 24. 75 P/N.f. CENTRAL LINE OP MOTION 7 PIN. 6. … removed from their first position and the link template willfollow them with its points 5 and f. The only restraint 7 76 SHITTING LINK MOTIONS. upon the course of this template is that the point S musttravel on the hanger arc c c. If therefore we describe newarcs about the centres/2 52, and adjust…
Steam-engines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
