The practical application of the slide valve and link motion to stationary, portable, locomotive, and marine engines : with new and simple methods for proportioning the parts (1870)
Auchincloss, W. S. (William Stuart), 1842-1928 · New York : Van Nostrand · leaf 142

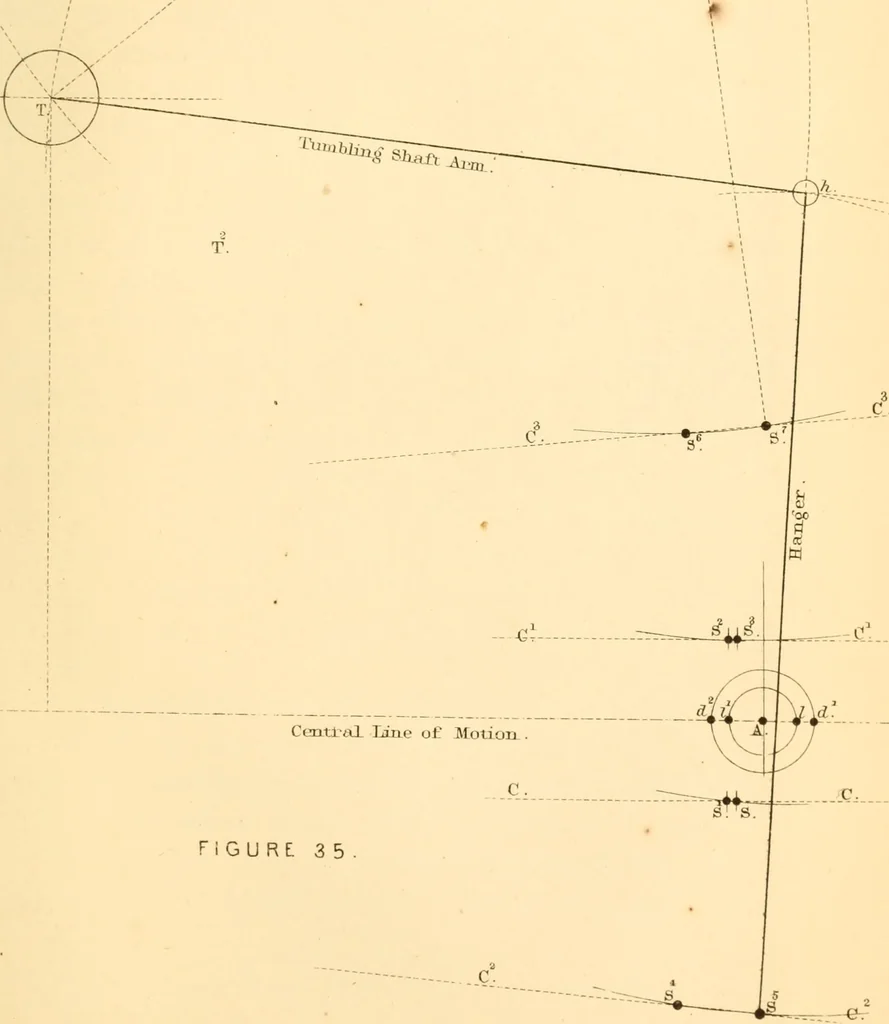

-0- >: i, … LINK NO. I. 117 nite arcs (as shown in Figure 34), on which the link tem-plate may travel in the full gear. IV. TO LOCATE THE TUMBLING SHAFT FOR ACCOMPLISH-ING AN EQUALIZED CUT-OFF IN ALL GEARS. Slide the link template with its eccentric rod pins on theelements 0.92/; 0.92 b, until its link arc…
Steam-engines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
