Practical applied electricity; a book in plain English, for the practical man. Theory, practical applications and examples (1911)
Moreton, David Penn, 1882- · Chicago, The Reilly & Britton co · leaf 102

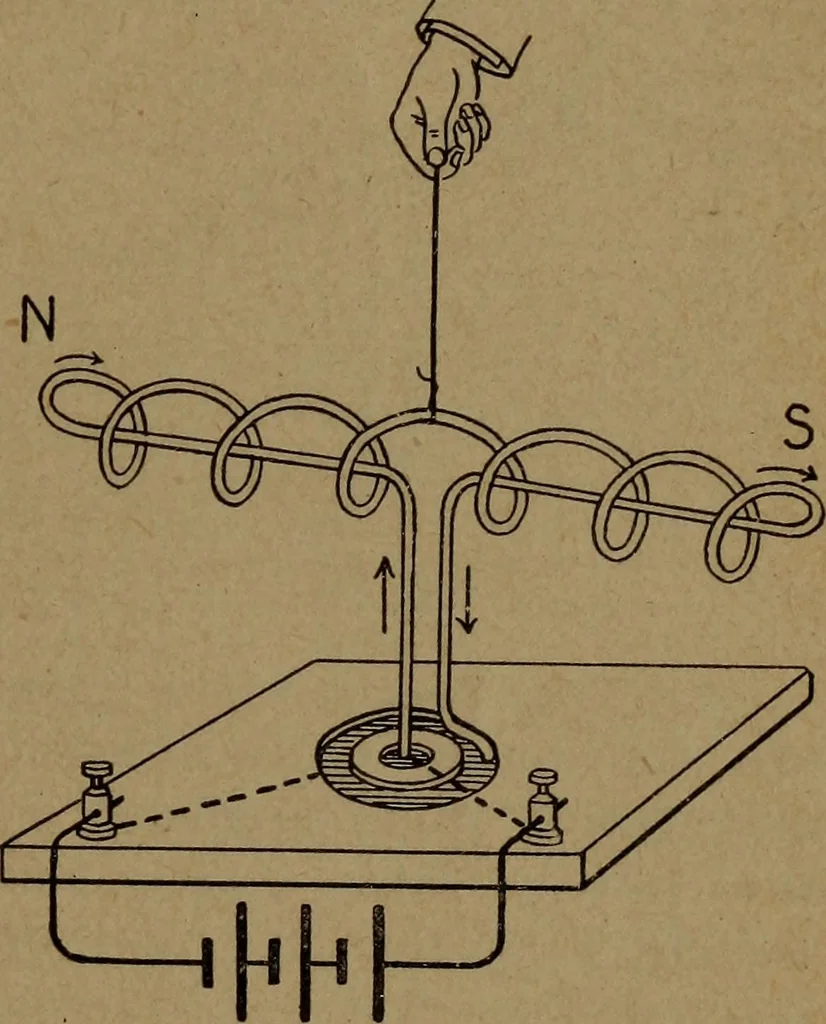

le tothe S-pole. Referring to Fig. 63, you see that the end ofthe solenoid toward the left will be the S-pole and the endtoward the right, the N-pole. A simple rule by which the polarity of a solenoid may bedetermined, if the direction of the current around the wind-ing is known, is as follows: If… … Fig. G4 92 PRACTICAL APPLIED ELECTRICITY rent around the winding is counter clockwise, the end near-est you will be the N-pole and the other end, the S-pole. Another simple rule is to grasp the solenoid with the righthand with the fingers pointing around the coil in the direc-tion of the current,…
Electrical engineering
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
