Practical applied electricity; a book in plain English, for the practical man. Theory, practical applications and examples (1911)
Moreton, David Penn, 1882- · Chicago, The Reilly & Britton co · leaf 135

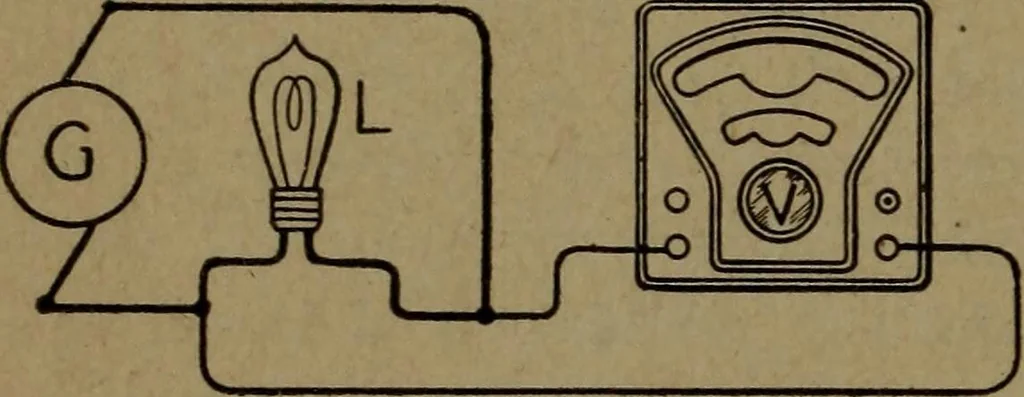

inpressure between their terminals. This condition of affairsconsiderable loss and it could be reducedresistance of the voltmeter. An ammeterconnected in the line lead-ing from the generator(G) to this lamp would in-dicate the combined cur-rent in the lamp and thevoltmeter circuits. Hence,in order… … Fig. 91 voltmeter the total large in comparison circuit will be small in comparison to the lamp current and the ammeter indication will be practically equal to that in the lamp circuit. The above discussion leads to the conclusion that an ammeter and a voltmeter need differ only in their…
Electrical engineering
