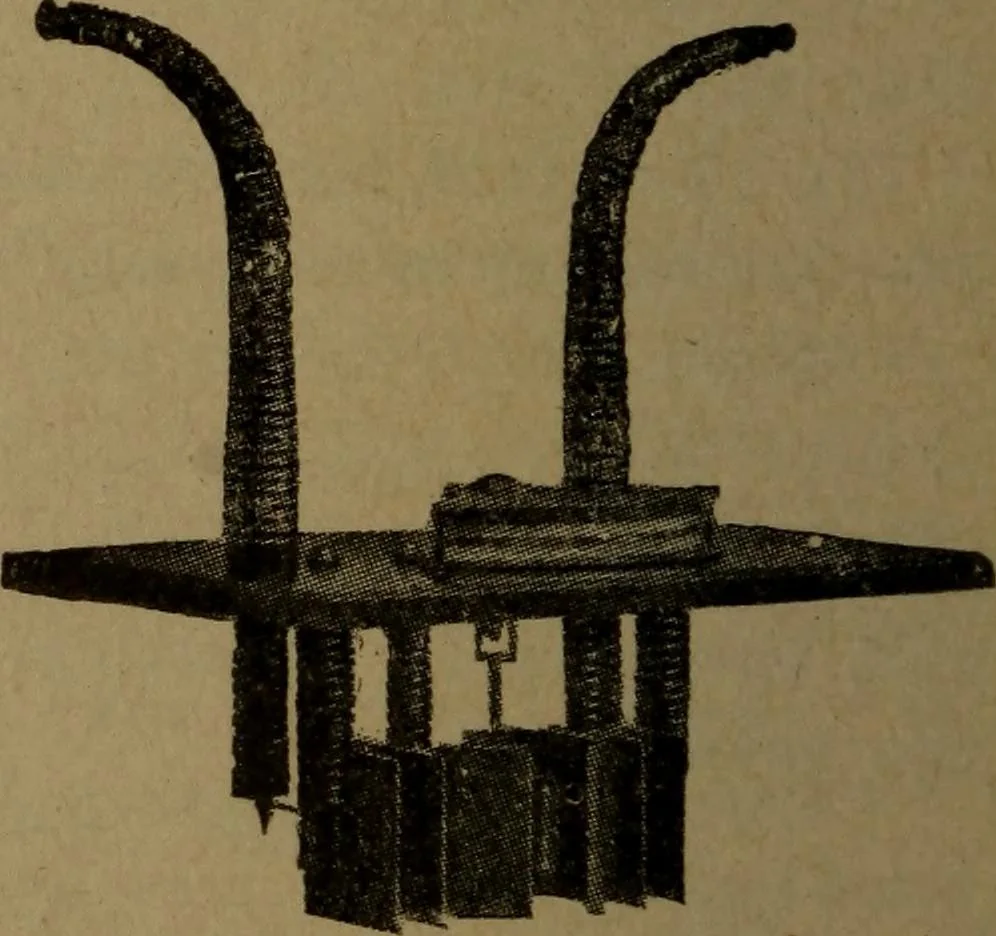

r constructed so thatone plate may move with respect to the other. When acondenser is charged, there is a force tending to draw theplates together, due to the charges of opposite kind on rhetwo sets of plates, and it is this force that produces thedeflection in the case of an electrostatic… … Fig. no Fig. Ill An electrostatic voltmeter suitable for measuring extremelyhigh voltages is shown diagrammatically in Fig. 110. Theprincipal parts are the moving elements (Mi) and (M2), thecurved plates (Bj) and (B2), the condensers (Ci) and (C2),scale (S), pointer (P), and terminals (T^) and…
