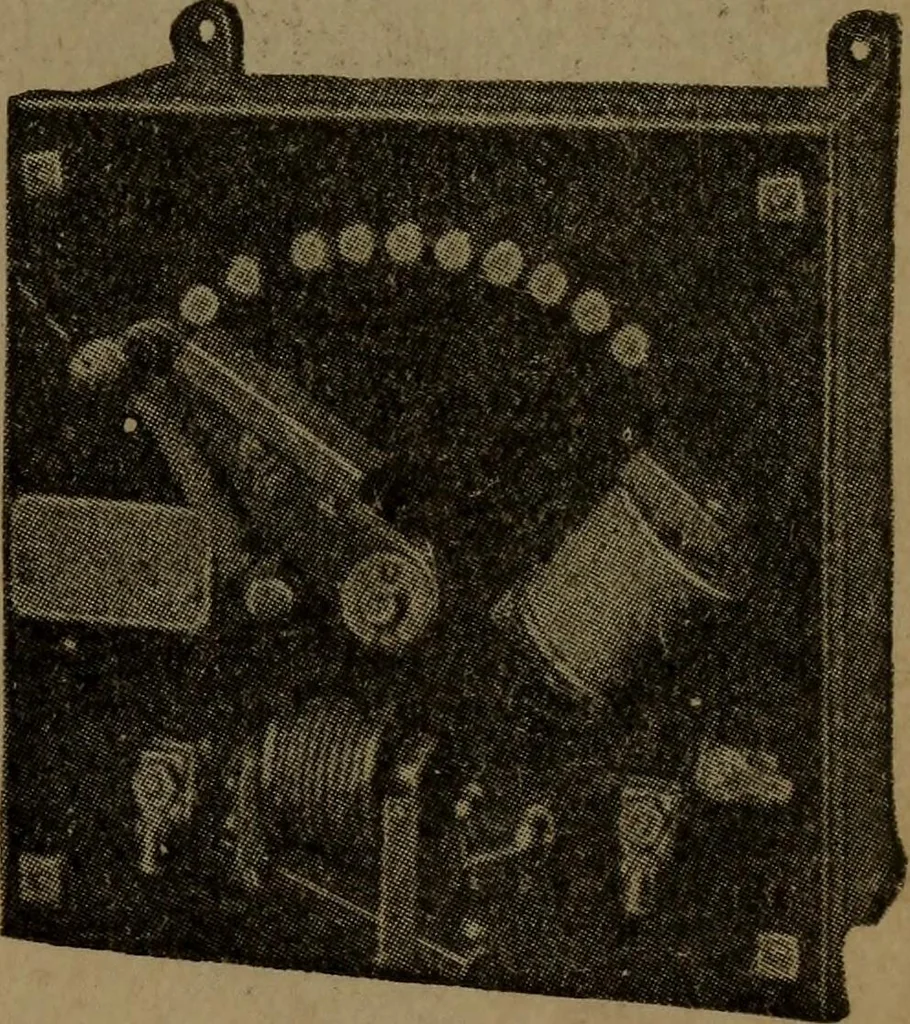

iron of the magnetic circuit isworked near saturation or above the knee of the mag-netization curve, the cTiange in speed will not be as greatas it is when the iron is not so near saturation. The in-crease in torque with an increase in load must necessarilybe greater than in the case of a shunt… … Fig. 167 208 PBACTICAL APPLIED ELECTKICITY be-S and armature being connected in series. If the iron islow the knee of the magnetization curve the torque willthen vary practically as the square of the current; when,however, the magnetic circuit is worked above the knee ofthe curve, the variation in…
