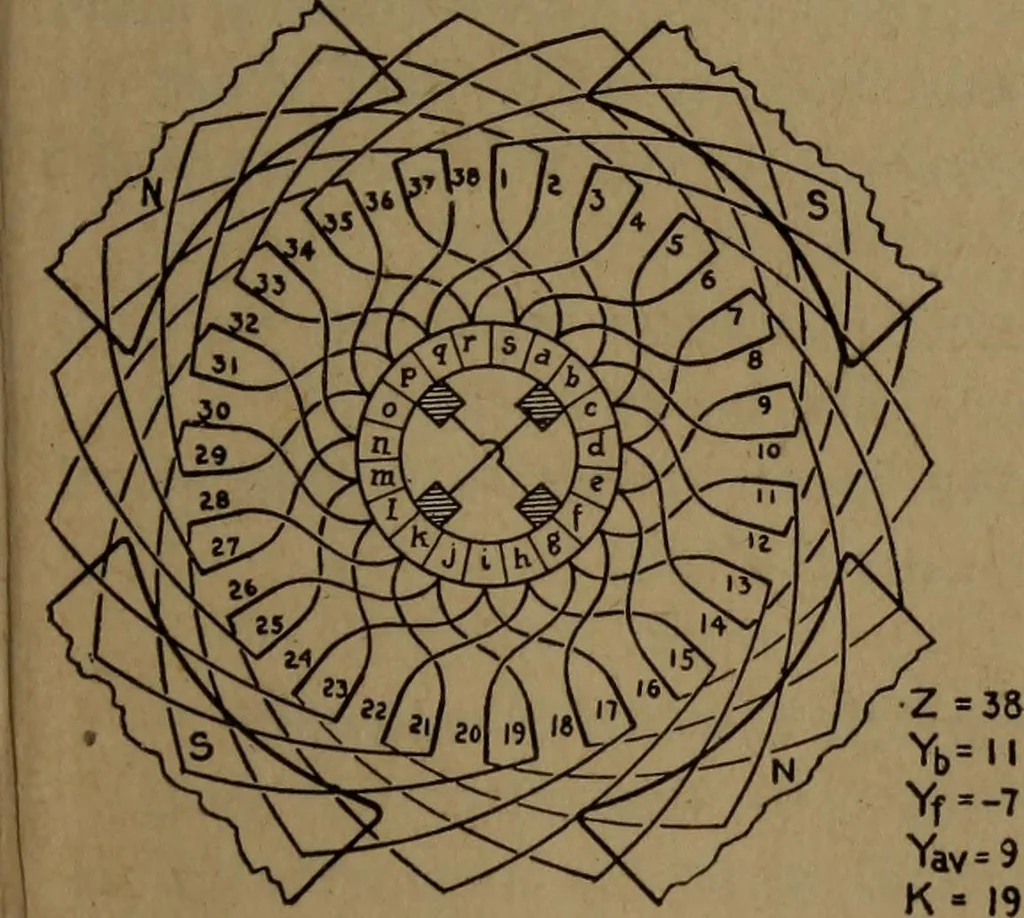

g. 199 is duplex singly re-entrant. The number of pathsthrough the winding is thesame in both cases. 248. Number of PathsThrough Armature Windings.—As stated in section (244),the number of paths in par-allel (b) for a simplex spirally-wound ring is (p), and for asimplex series-wound ring (2). When… … Fig. 200 234 PBACTICAL APPLIED ELECTRICITY wound ring winding would have (3X2) paths in parallel, anda duplex spirally-wound ring winding would have (2Xp) pathsin parallel. Winding tables are given in Chapter 20, whichshow the relation between the multiplicity, the re-entrancy,the number of paths,…
