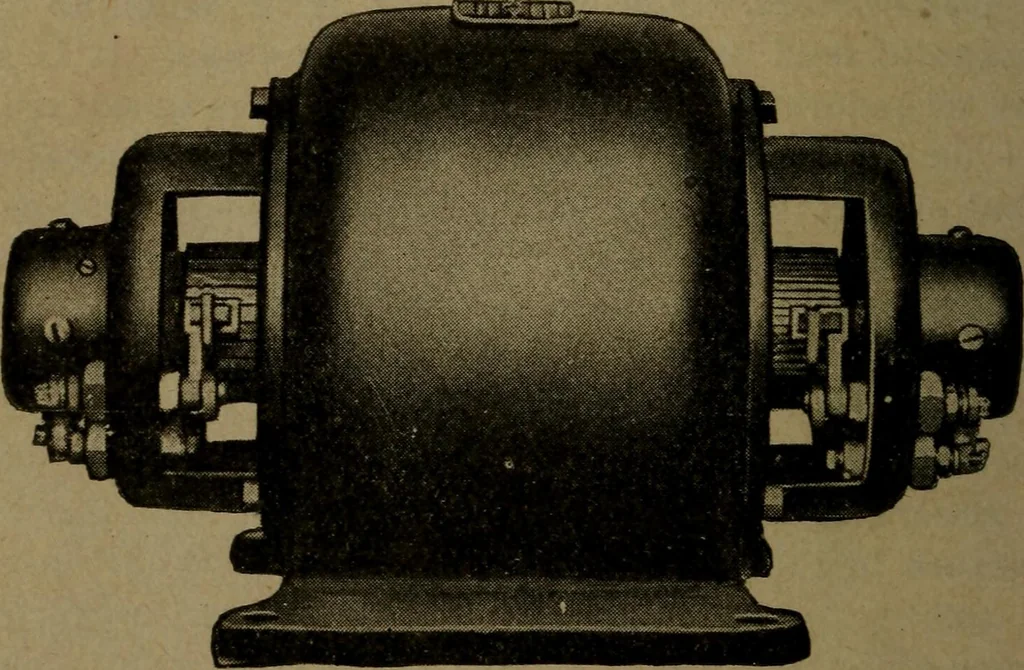

ne side of the systemIs carrying a larger load than the other. When the dyna- 266 PEACTICAL APPLIED ELECTKICITY mometer is thus used, it is called an equalizer; the wind-ings on the armatures are the same and the machine canbe connected to the line as shown in Fig. 223. When thetwo sides of the… … Fig. 222 of the system is carrying a larger load than the other, therewill be a greater drop in the leads connected to it and, as aresult, a lower voltage will exist over the larger load thanexists over the smaller load. The armature winding of thebalancer connected to the higher voltage will act…
