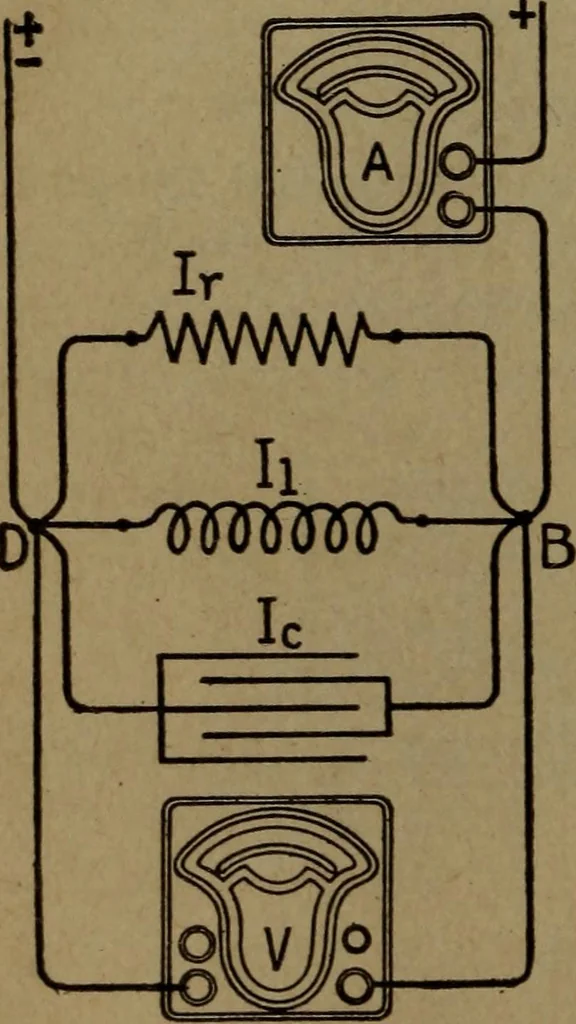

s equal to the indica-tion of the voltmeter (V) divided byimpedance of the branch. If the relation betweenreactance and the resistance is the same in eachbranch, the current in the various branches will be dis-placed in phase from the pressure indicated by the volt-meter (V), the same amount, or… … Fig. 289 the the THE ALTERNATING-CUBRENT CIRCUIT 35c f\ N ^1 e: b A ( A 9 . 90 180 Fig. 290 2.70 360 phase, and the vector sum when the branch currents are notin phase. 392. Instantaneous Power in an Alternating-Current Circuit. —The instantaneous power in a circuit at any time is equal tothe…
