Practical applied electricity; a book in plain English, for the practical man. Theory, practical applications and examples (1911)
Moreton, David Penn, 1882- · Chicago, The Reilly & Britton co · leaf 46

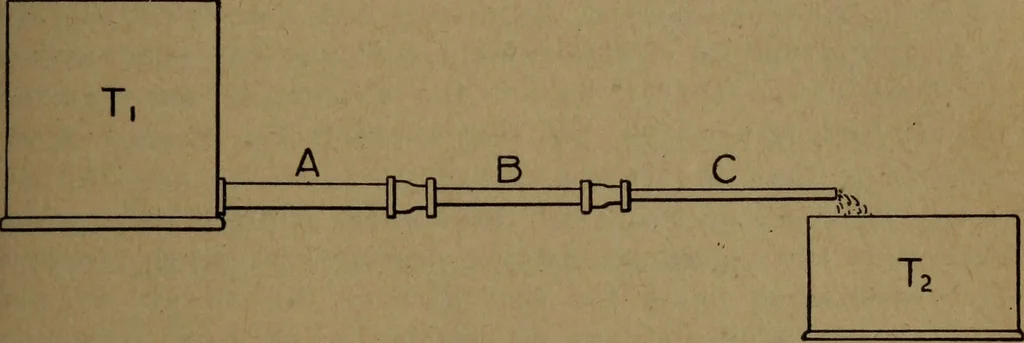

B B Fig. 6 SERIES AND DIVIDED CIRCUITS 35 lecting the resistance of the connections and the internalresistance of the battery, will be 3 + 4 + 5—12 ohms. The above relation of the total resistance to the individualresistances can be shown by a hydraulic analogy. Supposethat in Fig. 7 (A), (B), and… … Fig. 7 series, and they are to be used in conducting water fromthe tank (Tj) to the tank (T2). It is apparent that the totalresistance offered by the three pipes connected in series isequal to the sum of their respective resistances. 45. Facts Concerning Series Circuit.—There are four…
Electrical engineering
