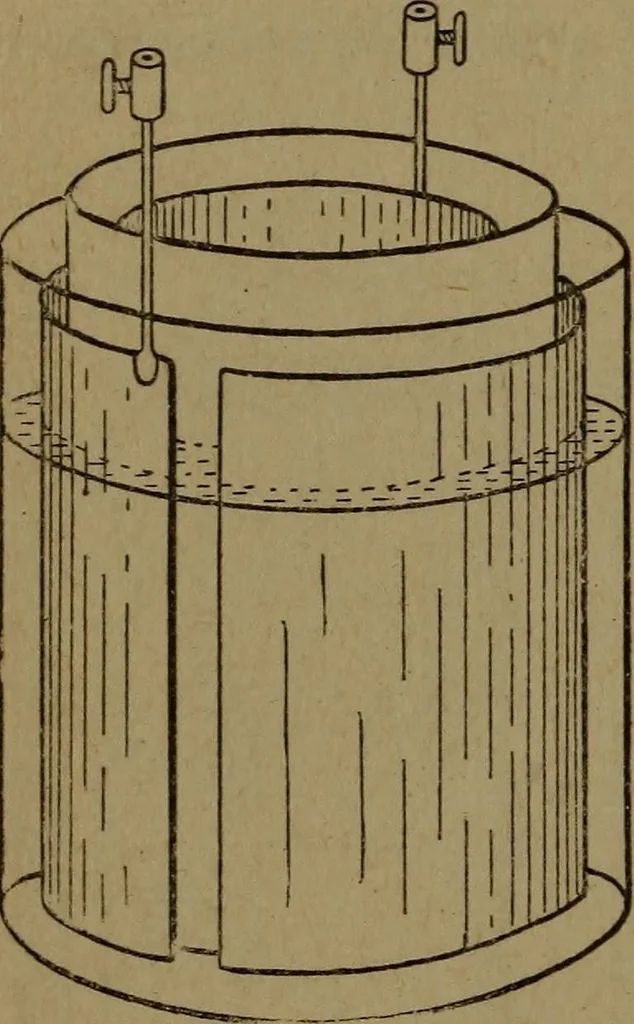

type of cell consists of a zinc plate immersed in a solu-tion of zinc sulphate and a copper plate Immersed ui a 68 PEACTICAL APPLIED ELECTRICITY solution of copper sulphate. The two liquids may be keptapart either by gravity or by a porous earthen cup, as shownin Fig. 28. When the solutions are… … Fig. 28 Cu /CaS ZnSo Zn. n Fig. 29 shown in Fig. 30. The copper sulphate being the heavierof the two liquids remains at the bottom about the plateof copper, while the zinc sulphate remains at the top aboutthe zinc plate. This cell will give a very constant e.m.f. ofabout 1.08 volts. It has a large…
