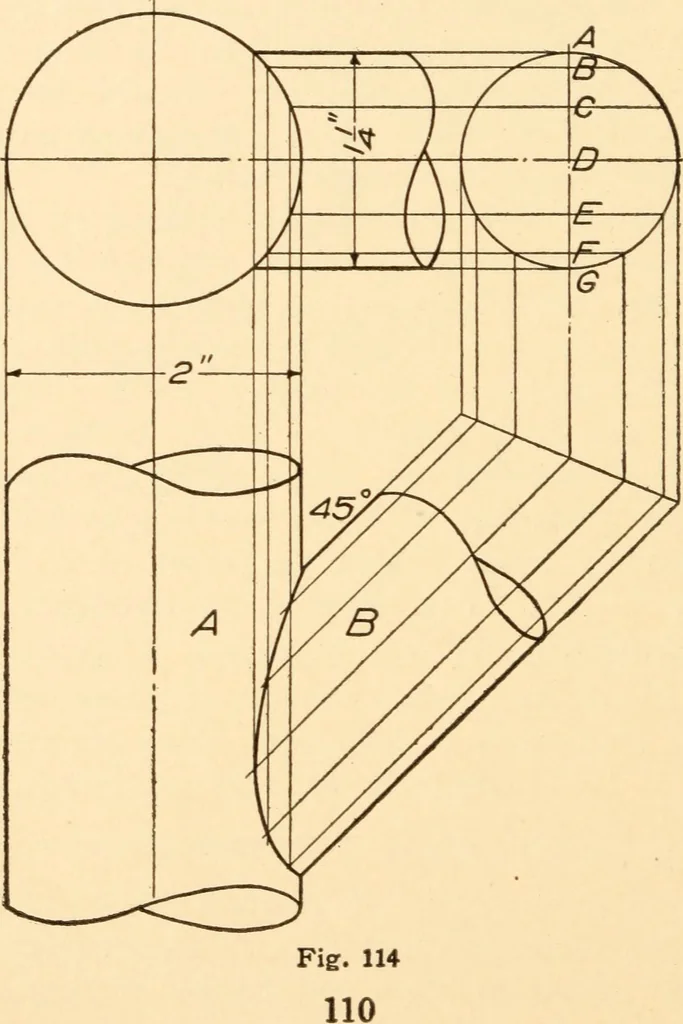

o its revolvedposition and A also. The true length of I-A is nowshown at i-A. Fig. 113 is an isometric illustra-tion of the above. CHAPTER IX PENETRATIONS V\7HEN one object intersects or penetrates an-^ ^ other, the line of intersection of the two isdefined where they meet. To determine the… … MECHANICAL DRAWING 111 DEVELOPMENT BY PARALLEL PLANES Problem i,—Fig. 114 is an illustration of two inter-secting pipes. First, draw the plan and front eleva-tion. Conceive a series of parallel planes, A, B, C, D,E, F, G, cutting through both pipes and parallel to
