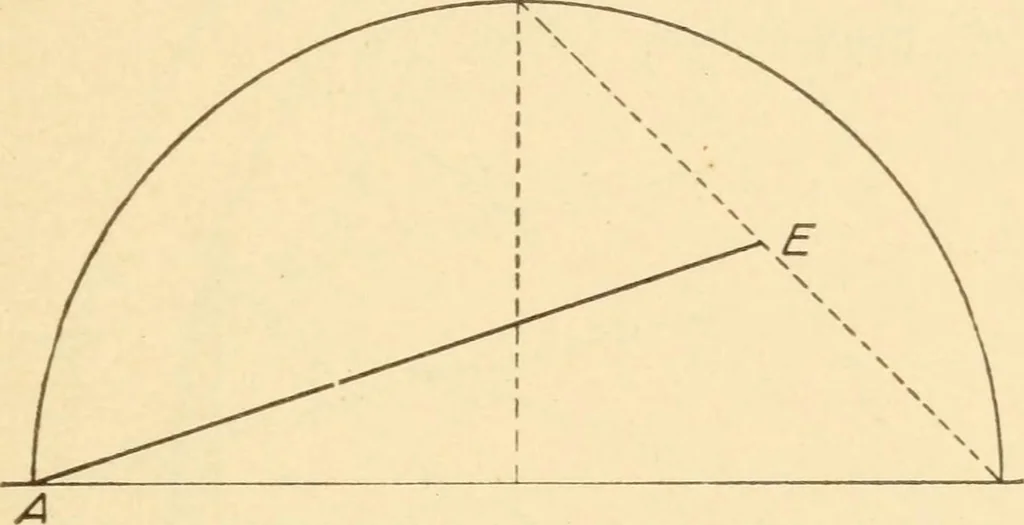

thod. Approximate. Fig.II. AE = BD, Fig. 10. Exercise to.—Construct a right-angle triangle oneangle of which is 30*^. The sum of all angles of anytriangle is 180°. If a right angle is 90°, what must theremaining angles be ? This exercise is applicable as an MECHANICAL DRAWING 23 aid in determining… … Fig. 11 Exercise 11.—To find approximately the distanceacross an unknown area by means of similar rightangles. Construction: Select a tree or object on theopposite bank or side as indicated at A. Select another
