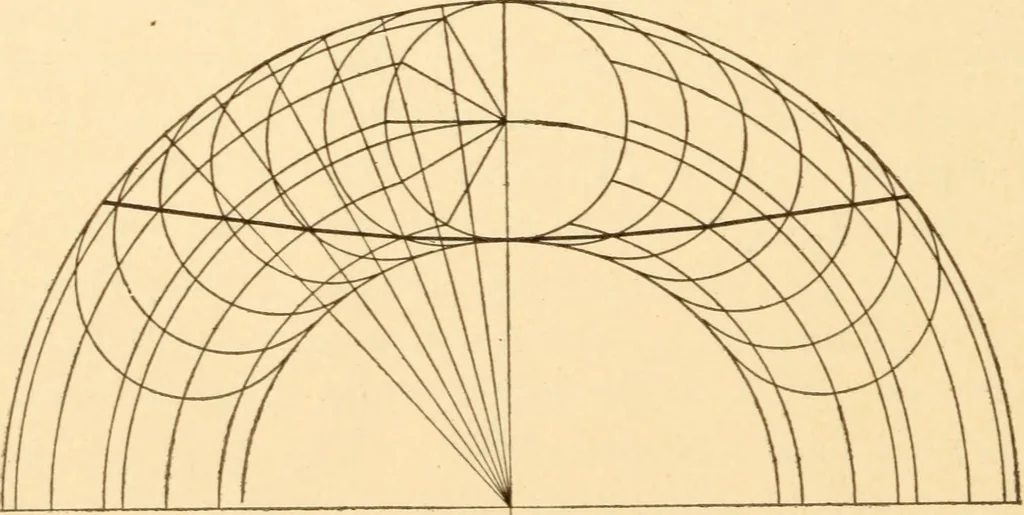

of the larger circle the hypocy-cloid would become a straight line. These curves are used in constructing the profile ofgear teeth. Fig. 46 is a draftsmans method of layingout the forms of teeth theoretically, the method to theright being involute, and that to the left, cycloidal. Fig.46a is a… … Fig. 45 MECHANICAL DRAWING 45 best to make it one-half the diameter of the pitch circleof the smaller of two engaging gears. In a problemwhere the diameter of PC, or 2R, and the number ofteeth n are given, the circular pitch, which is the dis-
