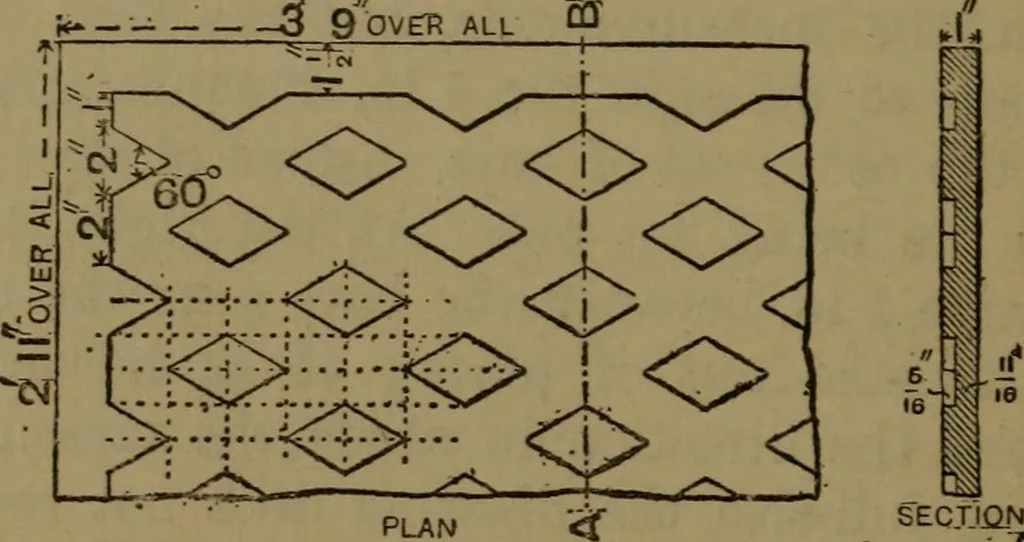

late of the style known as * chequered, for placing over anopening such as a valve-pit, manhole, etc., may be drawn. Thechequers, or raised pieces, are to prevent slipping, and give a firmfoothold when passing over it. In this case only one corner ofthe plate is shown on the drawing; the remainder… … SECTIONON UN? TtB Fig. 177.—Chequered Plate. dimensions fshow that the whole plate is 3 ft. 9 in. by 2 ft. 11 in.,and calculation will show that this will allow for six chequers inlength and eight in width. Another method sometimes adoptedis to show the outline of the whole plate to a small scale,…
