Practical draughtsmen's work, with numerous engravings and diagrams (1903)
Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 136

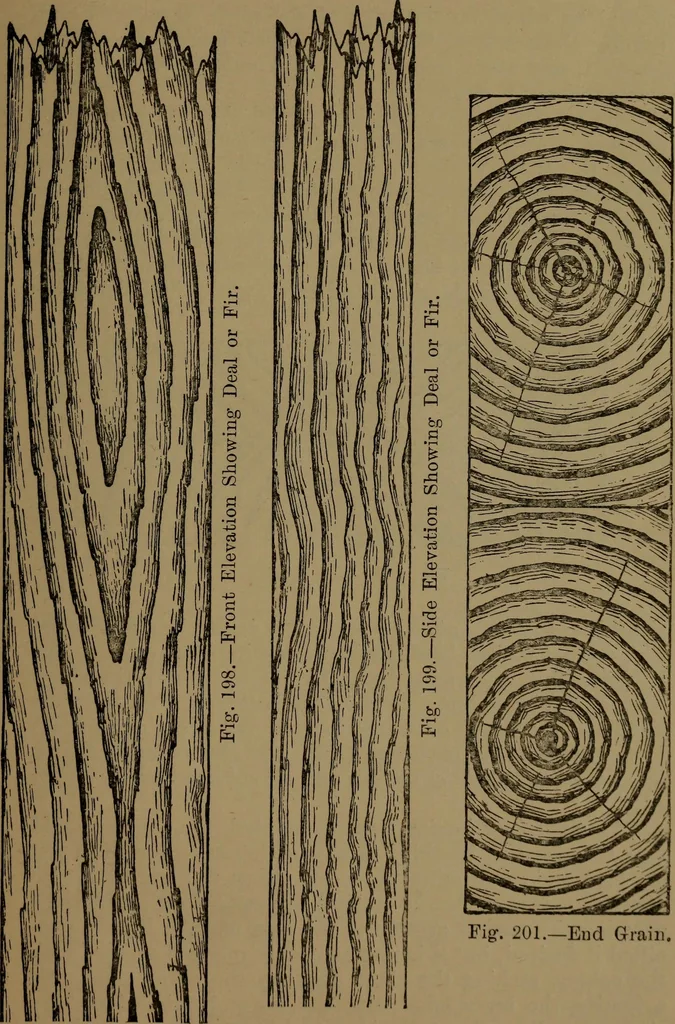

the endgrain and cross-section pieces. This darker tint will be theone used for the graining on the front and side elevations,and in mixing this colour it would be well to compare apiece of the actual wood represented, as the accompanyingillustration, as printed, is necessarily much too black to… … Fig-. 201.—End Grain, 134 PRACTICAL DRAUGHTSMENS WORK. should be wiped on the edge of the glass or gallipot con-taining clean water, leaving the brush wet, but not fullycharged, and every minute or two it must be rinsed in thewater to keep it clean. The so-called heart part in a board showing good…
Mechanical drawing
