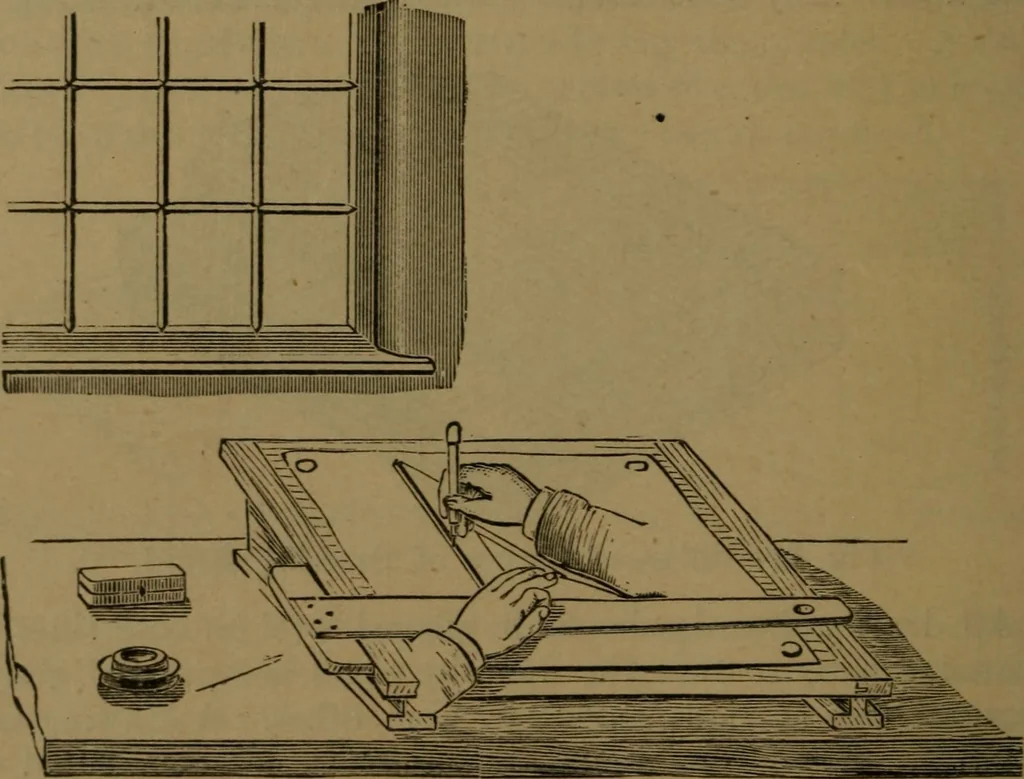

which thedraushtsman has to work is a matter of some importance. Forworking in the daylight, a window facing north, with the lightrather on the left-hand side of the board, as shown at Fig. 4, isabout the best arrangement, and when artificial light is employedthe lamp should be placed over and… … Fig. 4.—Position of Draughtsmans Board. draughtsman to work with greater ease, especially at the far sideof the board. The height of the desk or table on which the drawing-boardhas to be placed while the draughtsman is at work will bedetermined by the size of the drawings. When the paper isunder…
