Practical draughtsmen's work, with numerous engravings and diagrams (1903)
Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 20

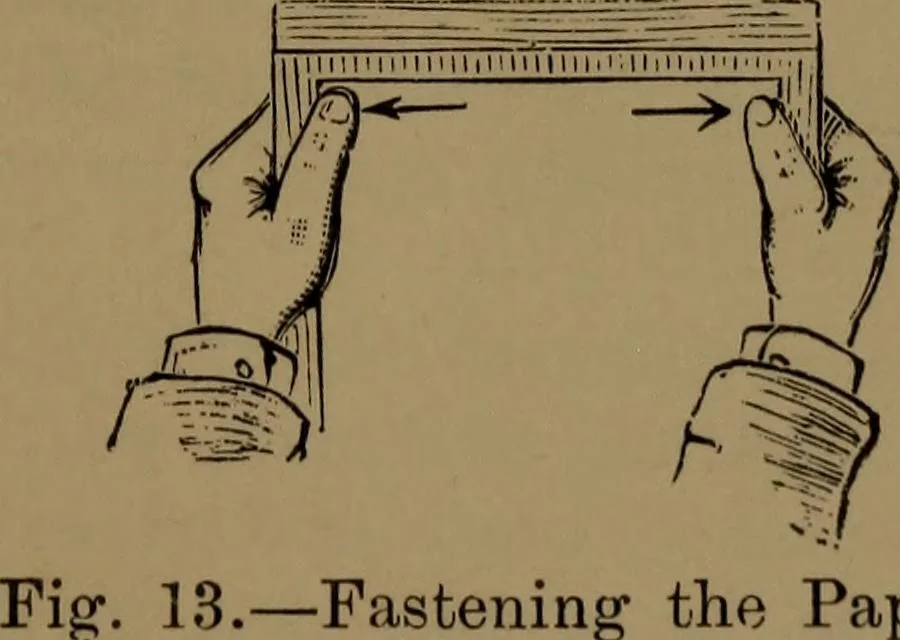

Fi^. 12.—Pastinof the Margin of Drawing- Paper. Now smooth down the paper, commencing in the centre of thesheet, with a clean dry handkerchief, working gradually towardsthe edges to expel the air. Then press the glued margins well on … Fastening the Paper. the board with the thumbs, at the same time drawing themapart, as shown by the arrows (Fig. 13). This operation shouldbe repeated all round the margin, the thumbs being always oppo-site each other during the stretching process. Shoemakers paste,which can always be obtained…
Mechanical drawing
