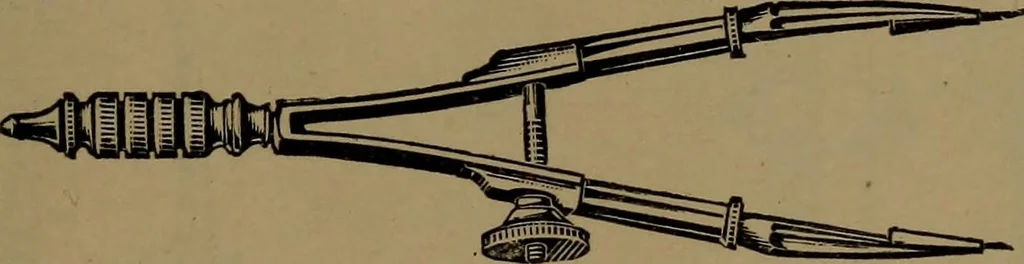

S. 31 quality of proportional compasses have additional scalesengraved upon them, giving the ratios of diameters of circles,areas, and other tables, and some have also a rack and pinionmotion, for setting the centre pivot in its correct position. Fig. 36.—Bow Corr.pass. Bisecting compasses are a… … Fig. 37.—Spring Bow Dividers.
