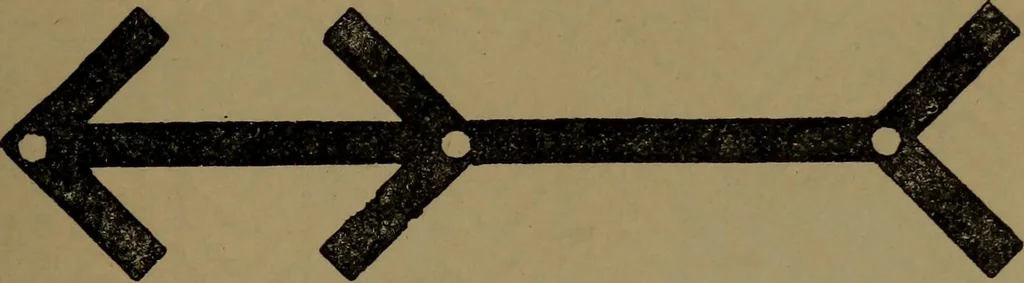

nd Vertical Lines Appear Unequal. of tlie same length at what is estimated to be a right angle fromit. Test all these points oy T-square and measurement, and DRAWING STRAIGHT LINES. 45 practise similar examples of jiadging lengths, central points, andangles, till the judgment will bear the test of… … Fig. 66.—Equal Spaced Spots Appear Unequal. uniformly spaced, but, to most people, the distance on the right-hand space looks much longer than that on the left, solely byreason of the lines drawn angleways confusing the judgment.Again, in Fig. 67, the two inner horizontal lines crossing theinclined…
