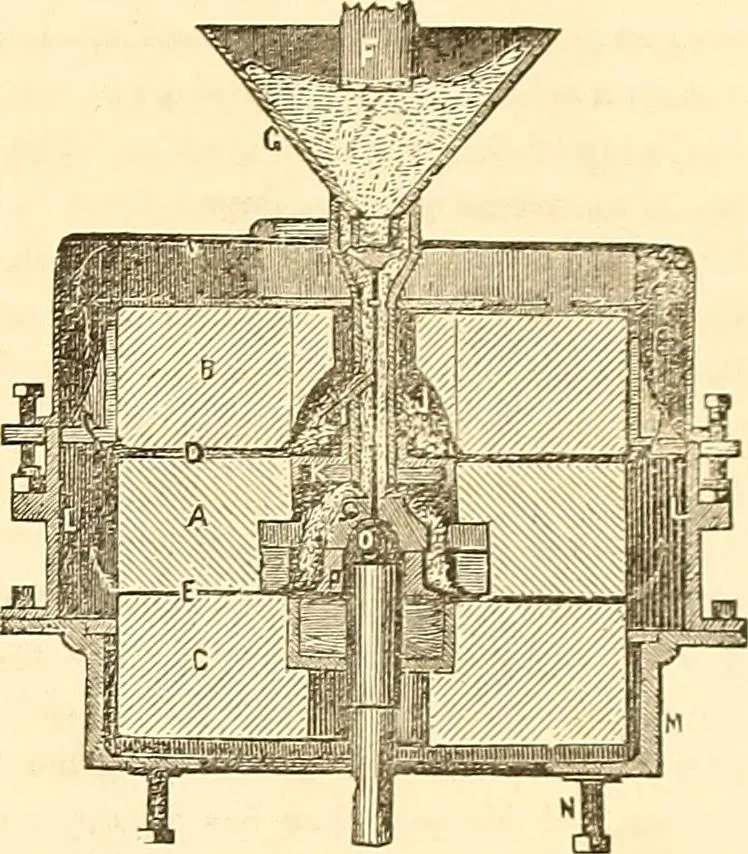

n with the bcvijlod top of theupper case, still Iurthcr sepaiatcs tlu; suspended (lour, and aidsthe ventilation. Anollicr modilicalion of stones relates to thevonibitiation of three or more separate stones, instead of two, ashitli(^rt() used. In this plan, vvliicii is represented in fig. 9,… … the central runner, and between the under surface of the latleiand the upper surface of the bottom fixed stone at e. The grainis fed through thepipe, F, into thehopper, G, throughthe adjustable feed-passage into the pipe,H. Hence the supplyfor the upper grind-ing surfaces passesout by the…
