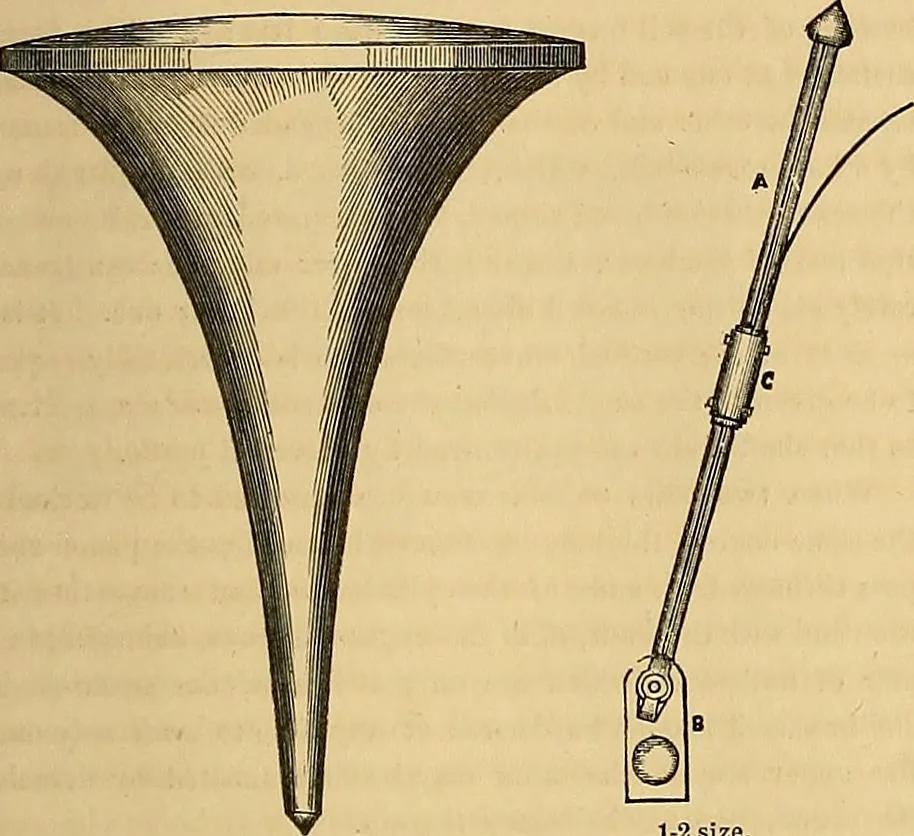

ivided BOOK OF INDUSTRIAL DESIGN. 105 into a series of infinitely short lengths, he proposed to take a moreobtuse cone for each larger portion, and in such progression, thatit would require equal pressure for every portion of the surface tocause a uniform sinking of the plug in the course of wear.… … Fig. 3. hence the use of the simple instrument illustrated by fig. 2. Thiscontrivance consists merely of a straight brass wire, a, jointed atone end by a pin to the upper surface of a small wooden slider, B,which is hollowed in the centre to receive the tip of the finger indrawing a curve. A small…
