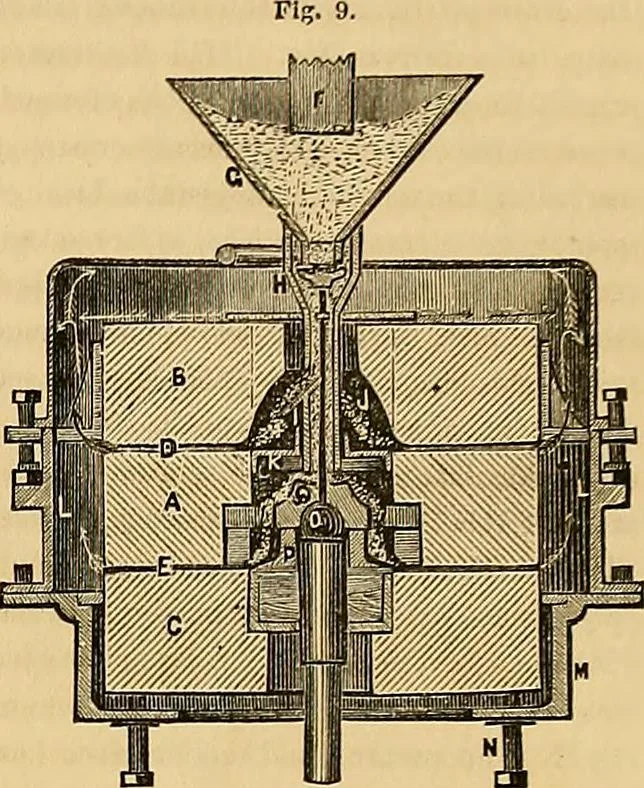

rming the lowerpart of the eye there-of. Here it falls onto the disc, k, and isdirected to the grind-ing surfaces. Thesupply of grain for the lower or secondary grinding action passesout at the bottom of the pipe, h, into the eye of the runner, A,and thence proceeds to the grinding surface. The… … Fig. 10. being steadied later-ally by an annularpiece of metal levelwith the floor, whilstit rests on adjustingbolts, n, beneath.The spindle, drivenby gearing from be-low, rests in an ad-justable balancedfootstep. It is fittedto the runner by aEyne, made on the balance principle.The top of the…
