The practical draughtsman's book of industrial design, and machinist's and engineer's drawing companion: forming a complete course of mechanical, engineering, and architectural drawing (1854)
Armengaud, aîné (Jacques-Eugène), 1810-1891, Armengaud, Charles A., 1813-1893, Amouroux, Jules, Cory, William Johnson, 1823-1892 · New York, Stringer & Townsend · leaf 302

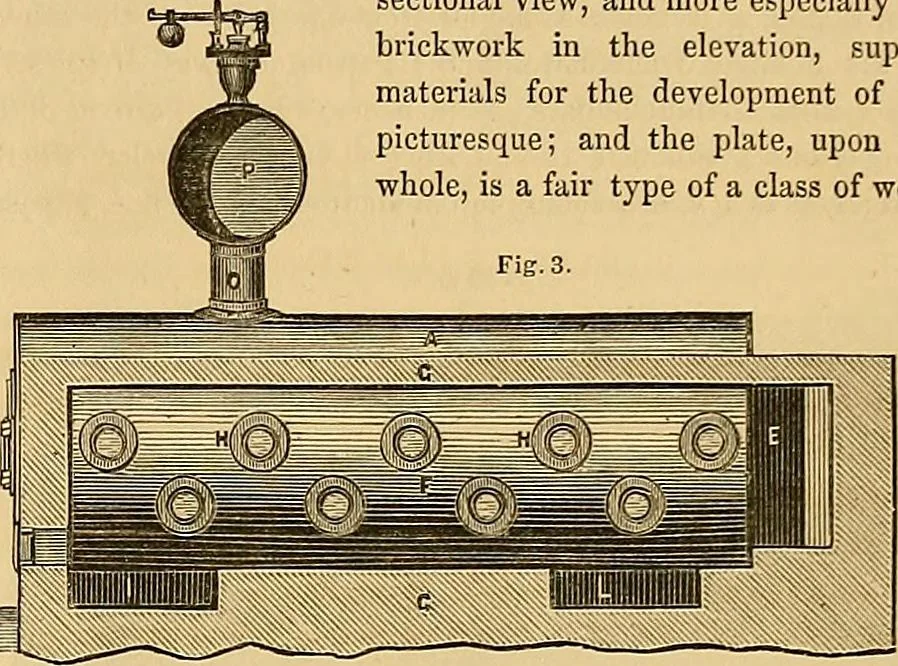

ninth example plate, illustrates a most effective style oftreatment of a stationary steam boiler, its seating and mountings.In these views the convex and concave rounds are well broughtout, and considerable relief is given to the furnace doors and boilerends by the judicious employment of shadows.… … in which a good display is made without much elaboration. Theboiler, which is the production of Messrs. Bellhouse & Co., ofthe Eagle Foundry, Manchester, is of the duplex or twin kind;that is, two distinct steam generators are combined together, towork as one boiler, the two being placed side…
