Practical electricity .. with questions and answers (1911)
Cleveland armature works, [from old catalog] comp, Lincoln, John C. [from old catalog] · [Cleveland, Ohio, Cleveland armature works] · leaf 224

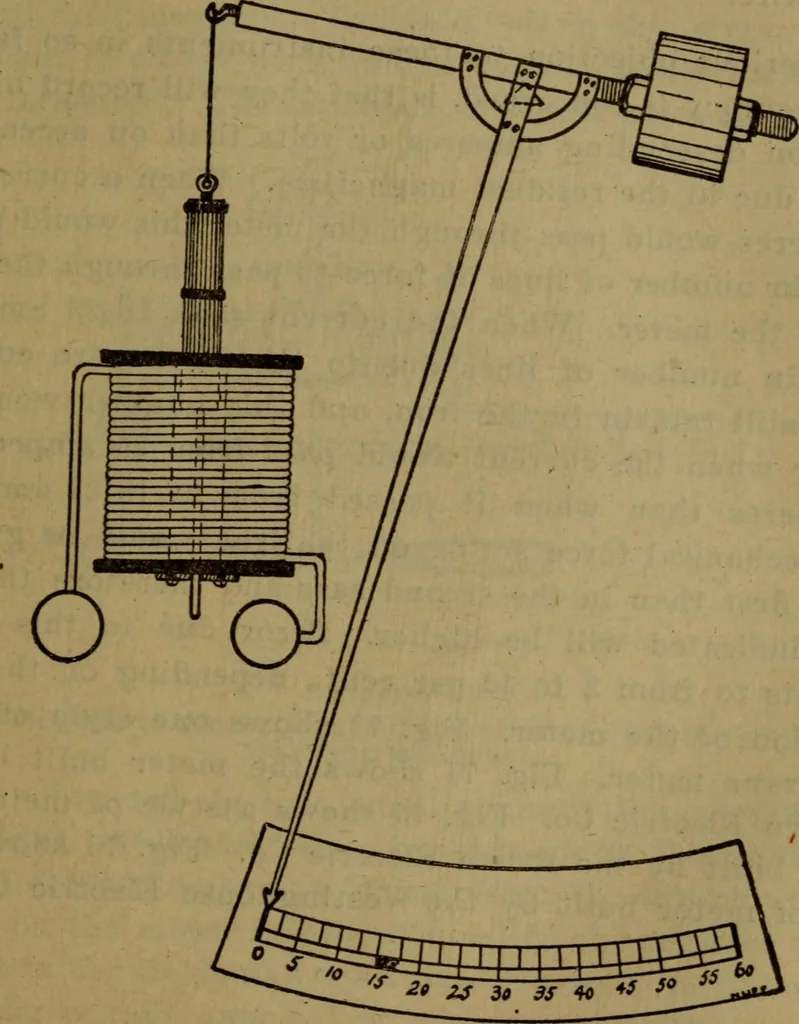

e resistance R and the bobbin B in-versely proportional to their resistances. Therefore, whena large current is passing through H, d oorrespomdiriglyiarge current is passing thrmigh bobbin B. As we have 213 seen in Fig-. 71, the posdtion of the pointer registers th«amount of current passing through… … i 214 a piece of iron. The attraction of the solenoid is balancedby a spring or gravity and the position at which equilibriumoccurs is a measure of the attracting force, and therefore ameasure of the ampere turns in the solenoid. Whether theposition of the pointer is to be read off as volts or…
Electricity
