Practical electricity .. with questions and answers (1911)
Cleveland armature works, [from old catalog] comp, Lincoln, John C. [from old catalog] · [Cleveland, Ohio, Cleveland armature works] · leaf 55

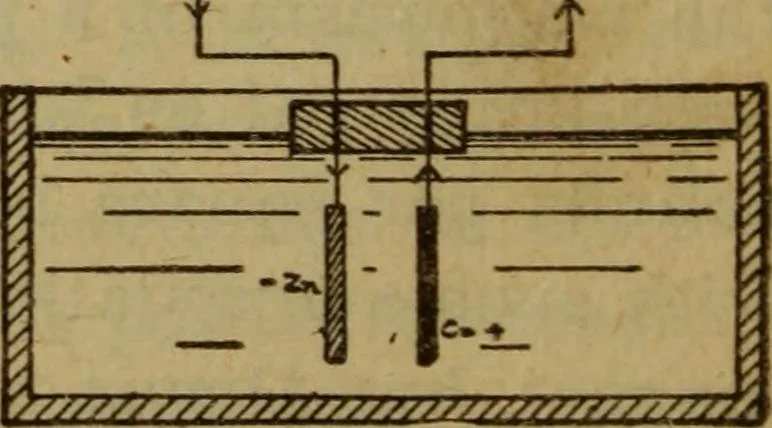

tothe addition of the mag-netic whirls of the wirescarrying the excitingcurrent. in an acid solution,copper are connected with a helix.This helix will turn and point northand south in the same way a com-pass would. It is attracted or re-pelled by a permanent magnet inthe same way that a compass is.… … Figure 18 Floating helix and electromagnet. 45 If now a piece of soft iron be placed in the helix allthe above actions become much stronger, but this is theonly difference. A piece of hard steel may be made into apermanent magnet by being inserted into a helix carryingcurrent. A helix with a large…
Electricity
