Practical electricity, with questions and answers (1901)
Cleveland armature works, [from old catalog] comp, Lincoln, John C. [from old catalog] · [Cleveland, Ohio, Cleveland armature works] · leaf 153

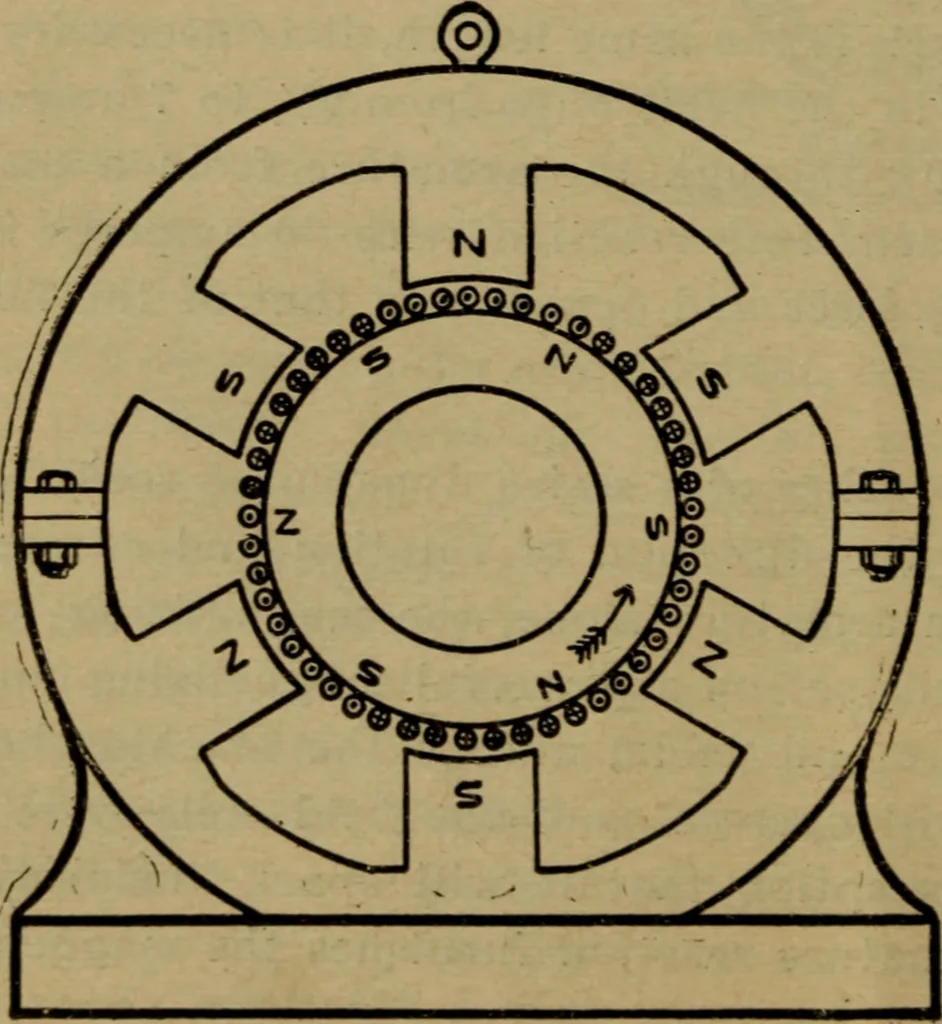

€ ampere turns onthe armature a-t full load should be from 1-2 to 2-3 the am-pere turns on the field at full load. As was noticed in Chapter IX, there are twice as manyturns of wire required on a Gramme ring airm-ature as on adrum armature to produce the .same number of conduc-tors, in which the E.… … Figure 54Flow of current in multipolar dynamo. © Indicates current flowing toward the observer.X Indicates current flowing away fvQm the observer. 141 fact make the Gramme ring a superior armature [Por arcdynamos ^vhere it is desired to have the armature a pow-erful mag*nat, -and indicates that the…Electricity · Electric generators
