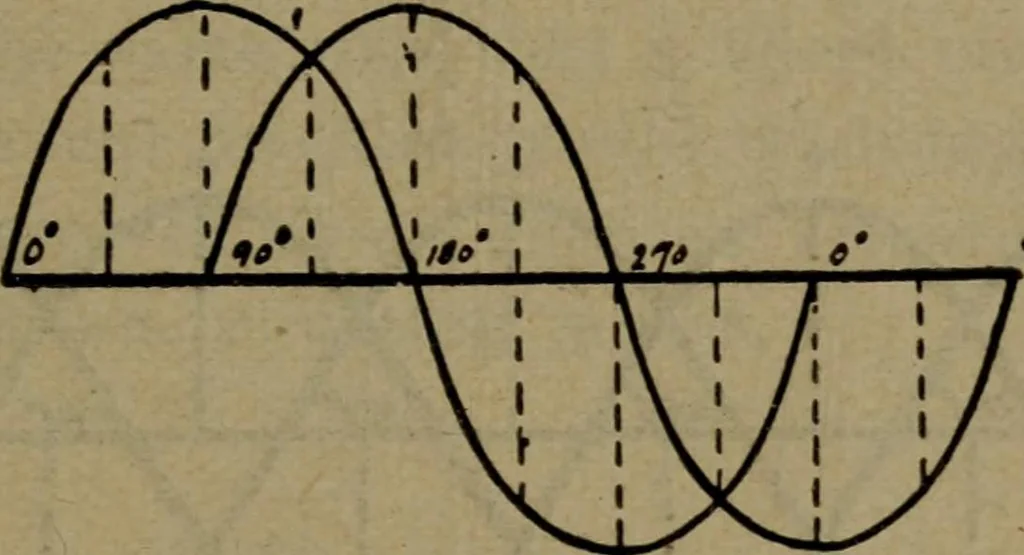

ows the two com-bined in one diagram. Fig. 84 shows a way in which a two-phase current may be taken from a direct current commu- 223 tator. It will be seen by an exainination of Fig. 84 thatthe two currents which are taken from the commutator ofthe two-polo dynamo are connected to bars which are 90… … -MAX. -MAXFigure 83Diagram of two phase currents or Figures 81 and 82 on one diagram. ^ ^.Kft. BRUSH RING INSULA
